Nora Lighting 1" Iolite LED Dedicated IC Air-Tight New Construction Housing, 600lm

Nora Lighting 1" Iolite LED Dedicated IC Air-Tight New Construction Housing, 600lm

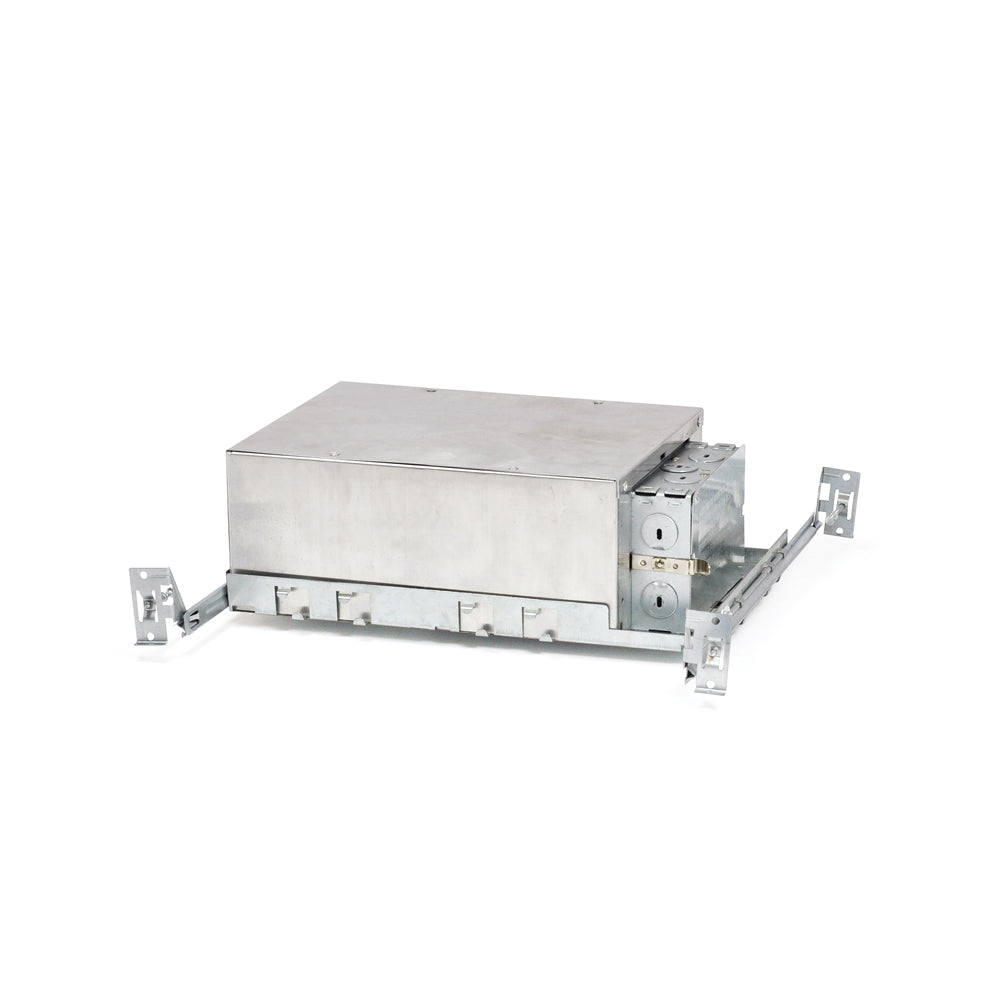

Dedicated new construction housing for 1? Iolite reflectors or 1? iPOINT monopoints. Rated for use in insulated ceilings and can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows easy, tool-less removal of the driver.

Features

• IC Air-Tight rated
• Quick connects provided for easy installation
• Dimmable
• 24-1/2? hanger bars with alignment feet and nails included
• cULus listed for damp location (wet location when used with specific reflectors)
• 5-year limited warranty

Compatible iPOINT Monopoints

• IOB-1RNB WETWET 1" Round Bullnose (BWF)
• NIOB-1SNB WETWET 1" Square Bullnose (BWF)
• NIOB-1RNG WETWET 1" Round Straight Regress (BWF)
• NIOB-1SNG WETWET 1" Square Straight Regress (BWF)
• NIOB-1RPH WETWET 1" Round Pinhole (BWF)
• NIOB-1RSL 1" Round Adj. Slot Aperture (BWF)
• NIO-1RNB WETWET 1" Round Bullnose (NTF)
• NIO-1SNB WETWET 1" Square Bullnose (NTF)
• NIO-1RNG WETWET 1" Round Straight Regress (NTF)
• NIO-1SNG WETWET 1" Square Straight Regress (NTF)
• NIOP-1RCY 1" iPOINT Cylinde
• NIOP-1RTC 1" iPOINT Cone

Housing

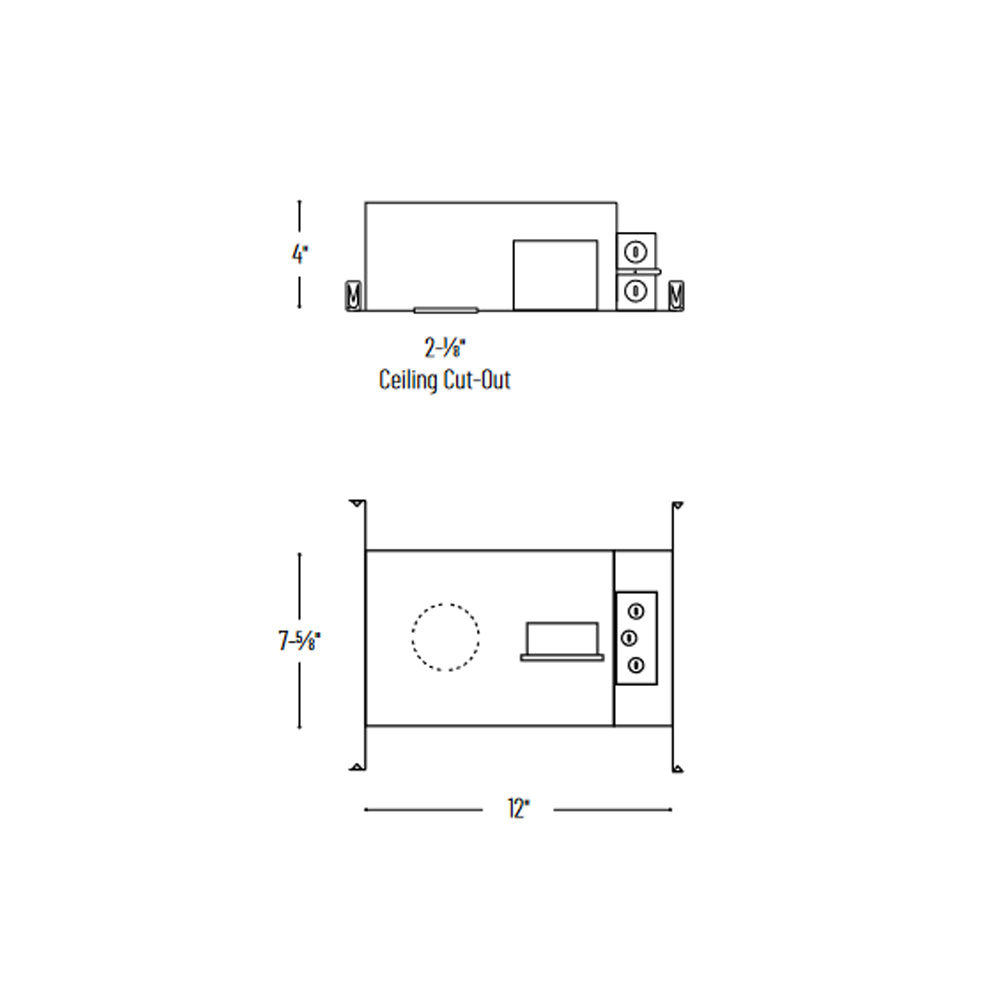

0.040" Aluminum shallow housing can be installedin 1/2" ceiling thickness, an extension collar (NIO-1EXTC2) isavailable for ceiling thickness up to 2".

Patented Driver Assembly
Allows driver to slide out ofhousing without tools from the room side.

Air Flow Restriction
Meets requirments of Air-Tight (AT)<2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.

Clearance
"IC" Insulated ceiling housings are directcontact rated. Not to be used in direct contact with sprayfoam insulation.

Bar Hangers
Two 13-3/4" to 24-1/2" adjustable bar hangerswith captive nails are included on housing. Bar hangersare parallel to junction box, but can be repositioned 90°perpendicular to junction box if desired. "L"-shaped barhanger foot to align to bottom of construction joist. A T-barnotch allows for easy installation in a suspended ceiling.

Junction Box
Pre-wired 25 cubic inch 0.064" thickgalvanized steel, with seven 1/2" knockouts, four Romex®pryouts, and snap on covers. All leads are #18AWG wire,the ground wire is connected to the bottom, and quickconnectors are supplied on all leads. Maximum of 8 no.12 AWG through branch circuit conductors suitable for atleast 90°C permitted in junction box. Access above ceilingrequired (use remodel housing and frame-in for accessfrom room side)

Emergency
Housing can be specified with connectionsfor emergency battery installation. Requires access aboveceiling. Must specify battery with remote test switchseparately (NEPK-07LEDUNV).Note: Emergency is not compatible with NHIOICDCP-16

Labels / Listing

• cULus Listed for Damp Location (Wet Location when used with compatible trim)
• RoHS Compliant
• FCC compliant
• Patent #D824567S
• Meets or exceeds ASTM-283 Air-Tight requirements

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
