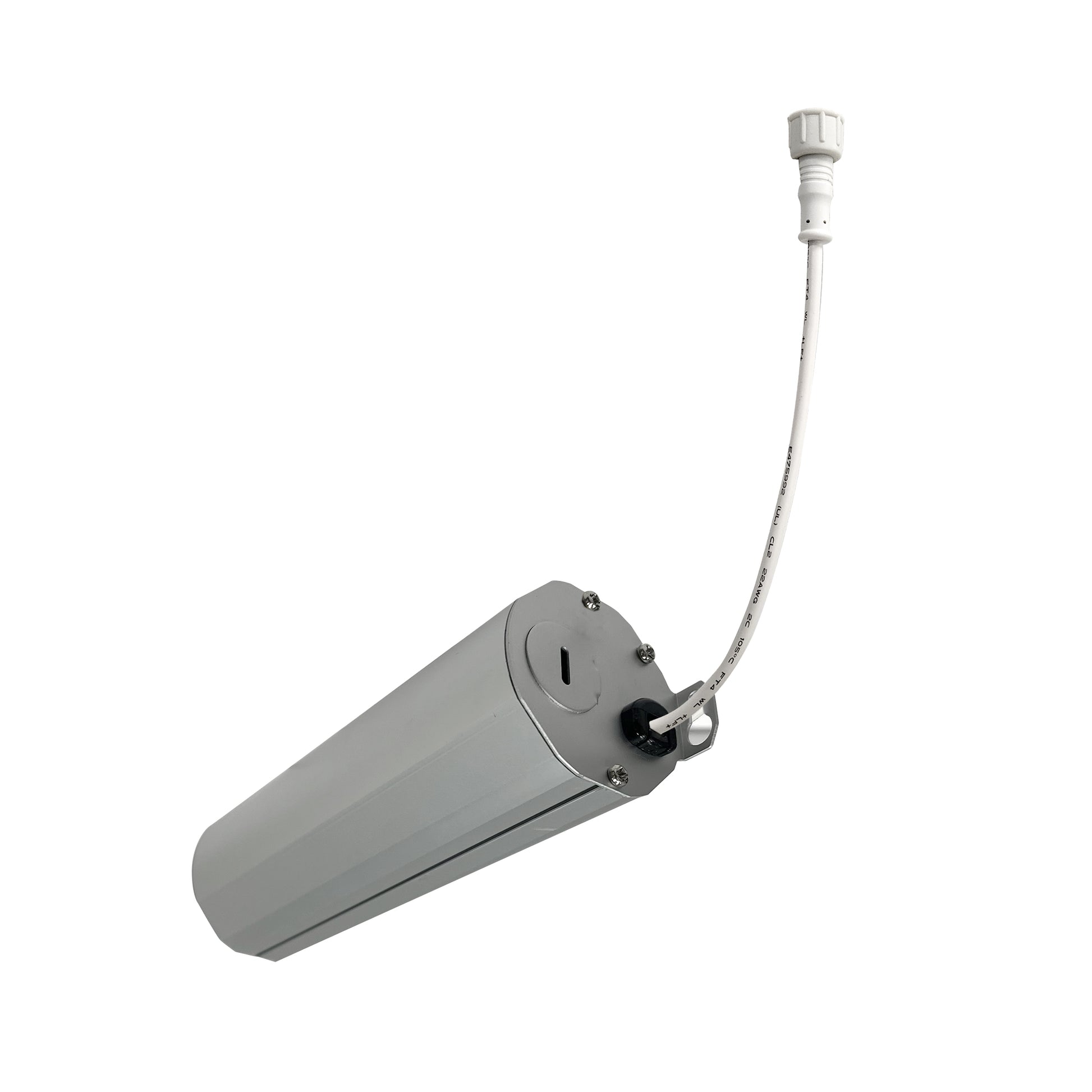

9W Driver Box for 1" Iolite Can-less and 2" M-Wave Can-less Downlights by Nora Lighting

IC rated driver box with dimmable driver. Used in conjunction with 1" Iolite Can-less LED modules or 2" M-Wave Can-less downlights.

Features

• No housing required - IC Air-Tight rated
• Easy installation for remodel or new construction applications
• Compatible with 1" Iolite Can-less or 2" M-Wave Can-less downlights
• Quick disconnect allows for extended lengths with accessories
• IC rated
• 120VAC input
• Triac or ELV dimming
• A8-2022, cULus and ENERGY STAR qualified
• cULus Listed for Wet Locations (when used with compatible module/trim

Specifications

• Construction: Prewired junction box includes 7" quick connect wire to the LED module for ease of installation. Junction box includes two 1/2" trade size knockouts and snap on cover.
• Clearance: IC rated driver boxes can be installed with direct contact against insulation (not spray foam insulation), no minimum clearance is required.
• Installation: Can be used in remodel applications without any additional frame. Can be used in new construction applications with universal new constrution frame-in (NF-R124).

Electrical

• Input Voltage: 120VAC
• Wattage: 9W
• Operating Temperature: 0°-30°C
• Dimming: Triac or ELV

Compatible Lumunaires

• Driver box is compatible with 1" Iolite Can-less and 2" M-Wave Can-less downlights
• Iolite Can-less: NIOC-1LED 1" Iolite Can-less LED Module
• M-Wave Can-less: NMW-2LED 2" M-Wave LED Module

Optional Accessories

• NF-R124: Universal New Construction Frame-In
• NCA-EW-4: 4' Quick Connect Extension Cable
• NCA-EW-10: 10' Quick Connect Extension Cable

Dimensions
7" x 2.05" x 2.17"

Wattage / Input Voltage / Dimming
9W / 120VAC input / Triac or ELV dimmin

Labels and Listings

• cULus Listed for Damp Locations (Wet Location when used with compatible module/trim)
• ENERGY STAR certified (when used with compatible module/trim)
• 5-Year Limited Warranty
• Certified to the high efficacy requirements of California Title 24 JA8-2022 (when used with compatible module/trim)
