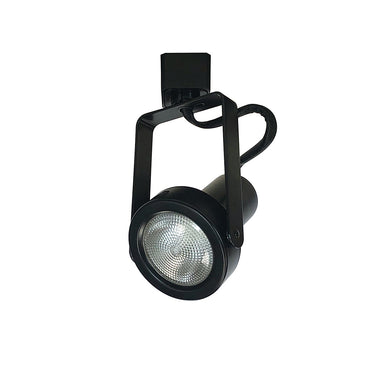

Line voltage rear loading track head with yoke that provides full adjustment of light source for special aiming and has single tightening knobs assure secure lock on angle position.

Features

• Die cast aluminum provides superior strength and rigidity
• One or two circuit track capable
• Accepts LED lamps
• 5-year limited warranty

Finish

• B/A = Black
• BZ = Bronze
• N = Natural Metal
• W/A = White

Housing
0.030" Deep drawn steel construction with simple, yet decorative design. All edges are softened for aesthetic appearance.

Yoke
0.085" Rigid steel "wishbone" yoke connects fixture housing to electrical contact head. Single plastic angle tightening knobs maintain clean, decorative appearance of the fixture and provides secure angle position.

Voltage
120V input

Socket
Medium base

Lamp
50W PAR20 max. (not included)

One / Two Circuit Conversion
Positive contact (opposite neutral and ground contacts) is preset to "down" position at factory but may be raised to the higher position to install onto the second circuit of Nora Lighting NT- 2300 series two-circuit track.

Labels and Listings
UL Listed

Dimension
4 1/4" L x 2 3/4" Dia. x 7 3/4" H
