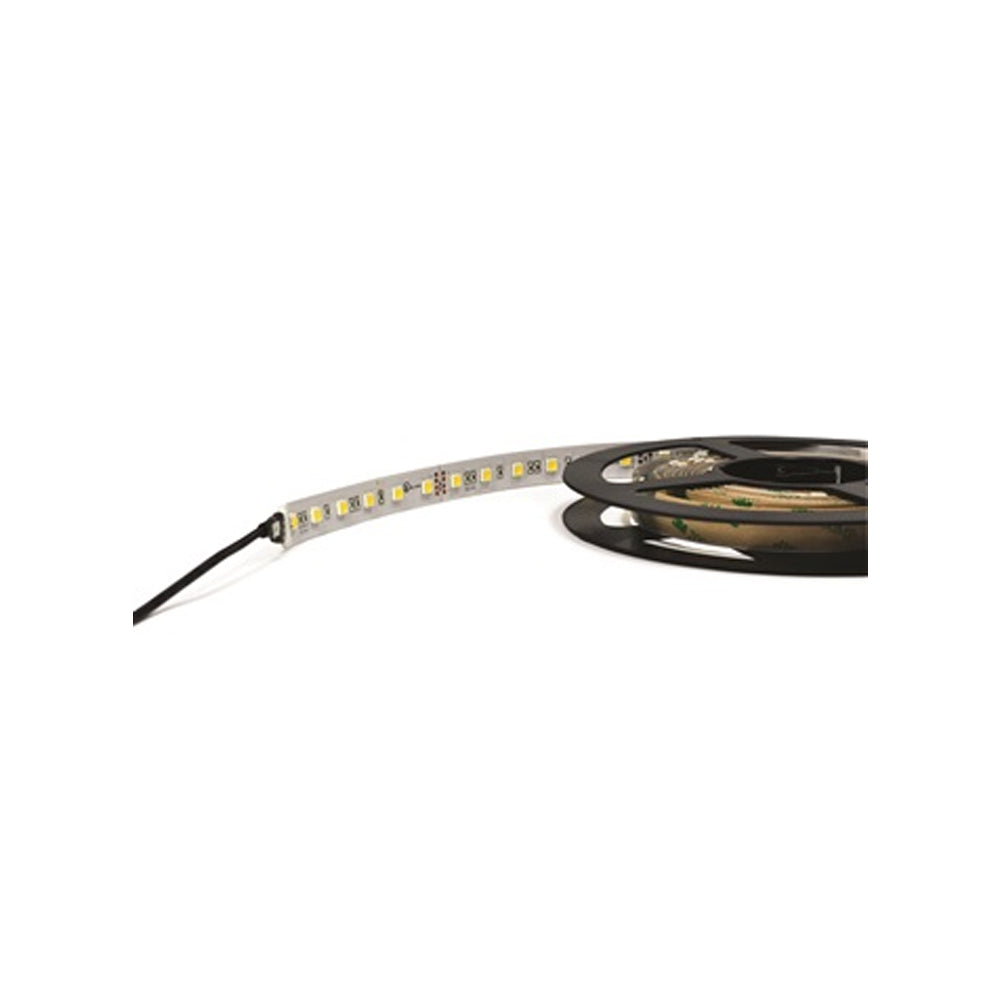

Nora Lighting 24V 10' High Output LED Tape Light Roll

Nora Lighting 24V 10' High Output LED Tape Light Roll

High Output LED Tape Light has four times the light output of our standard tape, consumes only 4W per foot, and is a perfect solution for your LED linear lighting needs. Very low profile High Output LED Tape is great for use in cove lighting, architectural enhancements, under cabinet or many more discreet locations. Available in a roll or section.

Features

• Available in 10ﾒ roll, 12" section, and 4" section
• 24V DC system
• 350 lumens per foot
• 5 available colors: Blue, Red, Cool White (4200K), Warm White (3000K) or Warm White (2700K)
• Separable every 12", easily disconnected and connected without soldering
• Field cuttable every 4" or 6 LEDs
• Easy to install; pre-applied 3Mﾙ tape or 15 acrylic mounting clips (included with roll)
• No soldering or additional wiring is required

INCLUDED WITH EVERY 10' ROLL
(1) 10ﾒ Tape Light Roll with 12" separable sections, (15) Acrylic Mounting Clips with screws [NATHR-680], and (1) 12" Power Line Interconnector [NAHO-609].

Construction
The silicone encapsulated tape can be cut every 4" or 6 LEDs at marked intervals. Cutting does not effect circuit (shrink wrap tube included for concealment). LED Tape Light is also separable every 12", each connection has pre-installed shrink wrap around power connections to ensure listing. Simply slice the clear shrink wrap at each electrical connection, and separate pieces. This eliminates soldering when using partial rolls. Each roll or kit comes with 12" power line connector [NAHO-609].

Mounting
Each Tape Light includes pre-applied 3Mﾙ adhesive tape for simple installation. Optional channels and clear acrylic clips are available.

LIMITATIONS

• Not rated or warranted for enclosed applications, only approved channels
• Tape light and most accessories are not rated for in-wall installation (NATL-W16-2 is rated for in-wall installations)
• Do not install in where LED chips are exposed to direct sunlight, as damage to the phosphor will occur

Electrical

• Input Voltage: 24V
• Light Source: 18 High Output LEDs per foot
• Lumens / Wattage: 350lm / 4.1W per foot
• Color Temperature: Blue, Red, 2700K, 3000K, 3500K or 4200K
• Color Rendering Index: 90 CRI
• Operating Temperature: -25°C to 45°C
• Dimming: Dimmable with Dimmable LED Driver
• Maximum Run Length: 10'

Labels and Listings

• cULus Listed for Damp Location
• 3-Year Limited Warranty

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
