Tech Lighting ISO LED Head

Tech Lighting ISO LED Head Low Voltage

The precision lines of the heat sink peak through the sleek outer housing creating a look that speaks to the functional performance of the luminaire. The LED is easily field-replaceable and upgradeable due to the solderless connector. The heat sink remains with the fixture minimizing any waste at the end of the lamp module's life.

Features

• 16 watt, 850+ lumen directional LED head
• Head rotates 360 degree and pivots 90 degree to direct the beam
• Integrated lens holder accommodates one MR16 size lens or louver (sold separately)
• Dimmable to 10% with low-voltage electronic or magnetic dimmer (based on the transformer)

Installation
Socket terminates with FreeJack male connector, which may be installed into a system connector, such as Monopoint or MonoRail.

Accessories and Optical Controls Available
Eggcrate Louver

Color Temperature
827: 80 CRI 2700K
830: 80 CRI 3000K
930: 90 CRI 3000K

Beam Spread
20: 20 degree
30: 30 degree
50: 50 degree

Length
03: 3"
06: 6"
12: 12"
18: 18"

Finish
S: Satin Nickel
W: White

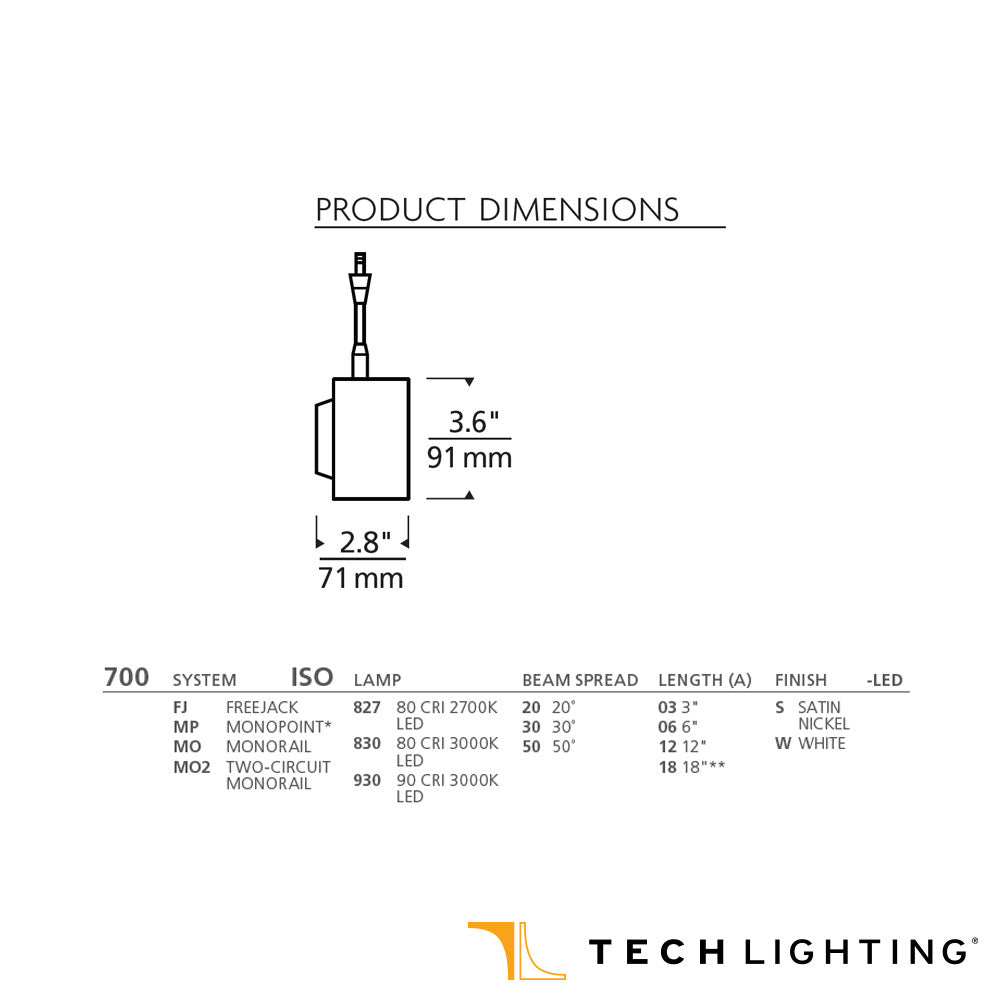

Dimension
3.6" D x 2.8" depth

Lamping
16W 850+ lm LED (included)

Shipping
Ships in 3 to 7 business days.

Listing
cETLus Listed

Item Codes
700FJISO: ISO LED Head Freejack
700MPISO: ISO LED Head Monopoint
700MOISO: ISO LED Head Monorail

*NOTES: MP (Monopoint) System includes 4" Round Flush Canopy.

Weight
1.58 LBS
