Tech Lighting ASH 10 Outdoor Wall

Tech Lighting ASH 10 Outdoor Wall

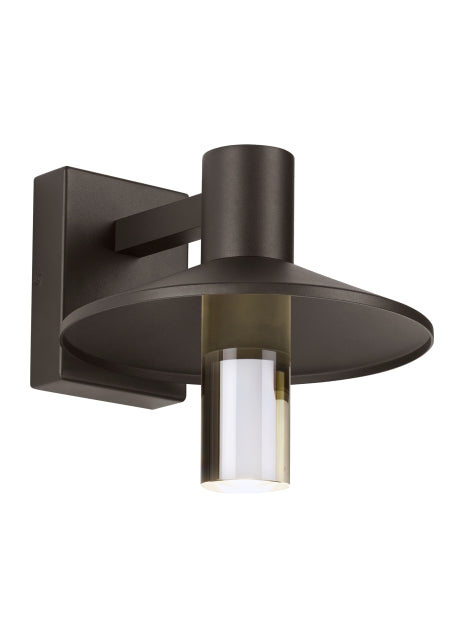

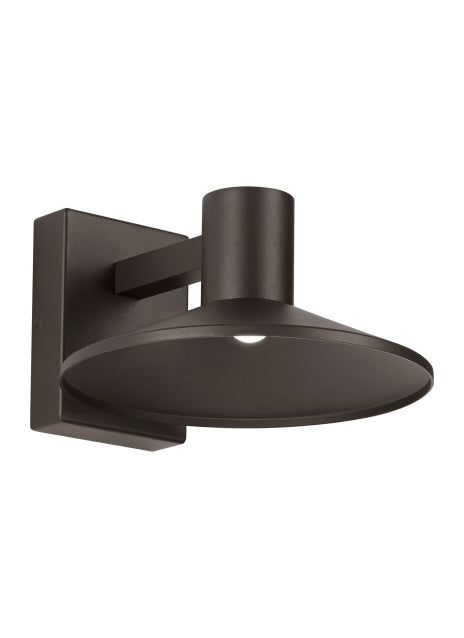

The Ash outdoor wall piece by Sean Lavin for Tech Lighting is a modern take on the classic industrial-style light fixture. The Ash features a sleek metal shade and clear diffuser thatﾒs ideal for creating a streamline column of light from under the shade. For added convenience in light output, the diffuser is removable to limit uplight for Dark Sky compliance. The Ash is available in two on-trend finishes, Bronze, and Charcoal. Integrated energy efficient lamping makes for a long-lasting trusted source of light.

Specification

• Delivered Lumens: 529 or 1114 with clear cylinder381 or 675 with clear lens
• Watts: 8 or 18
• Voltage: Universal 120-277V, with integral transient2.5kV surge protection (driver)
• Dimming: 0-10, ELV
• Light Distribution: Symmetric
• Performance Option: Photocontrol / Surge Protector

Material
Aluminum, Stainless Steel

CRI/CCT
L927: LED LO-OUTPUT 90 CRI 2700K
H927: LED HI-OUTPUT 90 CRI 2700K
L930: LED LO-OUTPUT 90 CRI 3000K
H930: LED HI-OUTPUT 90 CRI 3000K

Finish
Bronze
Charcoal

Lens
C: Clear Cylinder
D: Clear Lens

Dimension
Clear Cylinder Fixture: Width 10.5" x  Height 10" x Depth 12.5"
Clear Lens Fixture: Width 10.5" x  Height 9.6" x Depth 9.9"

Lamping
8 Watt 619529 Lumens 120 Volt/277 Volt Integrated LED
18 Watt 1114 Lumens 120 Volt/277 Volt Integrated LED
8 Watt 381 Lumens120 Volt/277 Volt Integrated LED
18 Watt 675 Lumens 120 Volt/277 Volt Integrated LED

Shipping
Ships in 3 to 7 business days.

Listing
cETLus Listed
IP65 wet listed

Item Code
700OWASH-10
