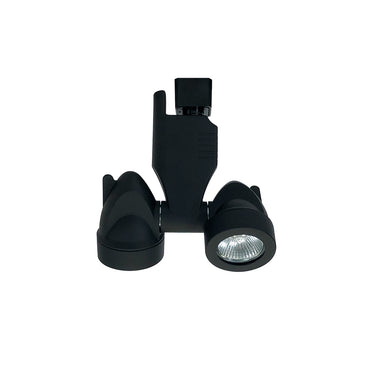

Nora Lighting Versa V-Tech Dual Head with Dimmable Transformer

Nora Lighting Versa V-Tech Dual Head with Dimmable Transformer

MR16 Low Voltage track Heads with electronic dimmable drivers/transformers compatible with LED MR16 lamps or Halogen MR16 Lamps. The fixtures have an integral driver/transformer that is rated for 0 to 60 watt loads. The zero low end allowance is critical to the long life performance of the LED MR16 lamps.

Features

• Compatible with several LED MR16 lamps or halogen MR16 lamps (not included)
• Die cast aluminum provides superior strength and rigidity
• Low profile, aesthetic design
• High-strength stainless steel electrical contacts
• One or two circuit track capable

Finish

• B = Black
• W = White

Track Head
Die cast aluminum construction. All edges are softened for aesthetic appearance.

Contact Head Assembly
"H" Style (standard): Three 0.030 stainless steel contacts mounted in premium plastic housing.

Housing
.030 drawn steel construction; cylindrical shape with ventilated rear for enhanced design, heat dissipation, and wire exit. .070 die cast aluminum baffle insert, eliminates side glare from fixture, and hold MR16 lamp source and clear shield.

Yoke
.085 Rigid steel yoke connects fixture housing to electrical contact head. Dual plastic angle tightening knobs maintain clean, decorative appearance of the fixture and provides secure angle position.

Socket
Porcelain socket for GU5.3 12V MR16 lamp.

Input Voltage
120V

Output Voltage
12V

Socket
GU5.3

Number of Lamps
Two

Maximum Wattage Per Lamp
25W

Lamp Type
Halogen or LED MR16

Transformer
Solid state LED Driver provides noise-free voltage reduction and operation

Dimming
Electronic low voltage

Labels / Listing
cULus Listed

ONE/TWO CIRCUIT CONVERSION
Positive contact (opposite neutral and ground contacts) is preset to "down" position at factory but may be raised to the higher position to install onto the second circuit of Nora Lighting NT-2300 series two-circuit track.

Dimension
2-5/8" Dia. x 6-3/4" W x 7-1/8" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
