Nora Lighting NX-811-LED Surface Adjustable LED Edge-Lit Exit Sign, 2-Circuit

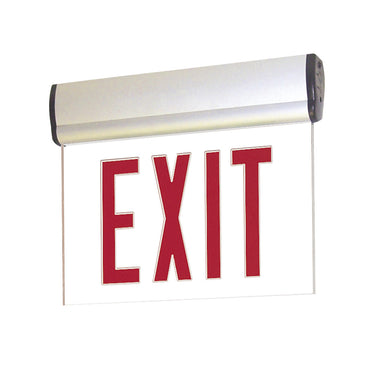

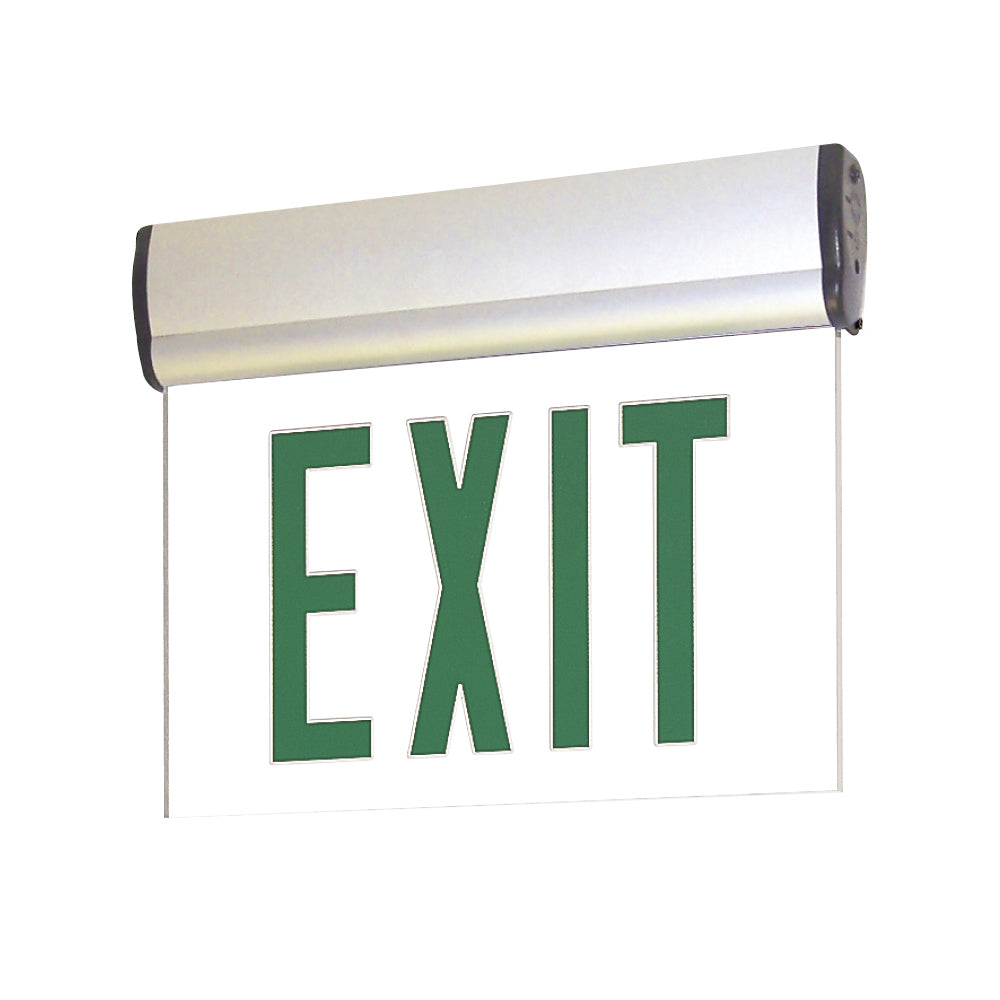

Ideal for architectural applications where aesthetic and minimal profile appearance is desired. LED sources within the adjustable housing cast a brilliant red or green illumination on letters embedded inside the acrylic face. A 90-minute battery is included for emergency operation.
Body
- Extruded aluminum housing and acrylic panel
Face
- Edge-lit Exit is available in either single or double face
- Face is constructed with 0.40 clear acrylic with rounded and finishededge for attractive appearance
- Face contains red or green 6" high and 3/4" thick lettering inside face to comply with NFPA requirements
- Reflective stick-on chevrons provided and are applied to rear of panel in order for light to reflect off the inner face of the chevron tape to provide a similiar effect as the lettering embedded inside the acrylic
- Face can be adjusted in the field from 0º to 90º for wall, ceiling or sloped applications
Mounting
- Mounting hardware consist of 0.06 steel universal junction box bracket, 7/8" profile 0.11 die-cast aluminum bracket cover, screws, wire nuts, and silver-finished plastic plugs that are used to eliminate remaining knocouts once mounting configuration is selected
Electrical
- Voltage: Dual 120V/277V (0.038A / 0.017A)
- LED Wattage: 3 Watts normal / 5 Watts emergency operation
- Emergency Circuit (NX-811-LED): 2nd circuit for input from external EPS or other alternative emergency power source or generator
- Battery (NX-812-LED): Replaceable Ni-Cad battery provides 90 minutes of illumination during emergency operation
- Testing: High charge / ready operation indicator light with test button and automatic reset
- Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
- Life Expectancy: 25 Years with no change in illumination level
Labels and Listings
- UL Listed
- NEC
- NFPA
- State & Municipal
- 5-Year Limited Warranty
- Certified to the energy efficiency standards of California Title 20

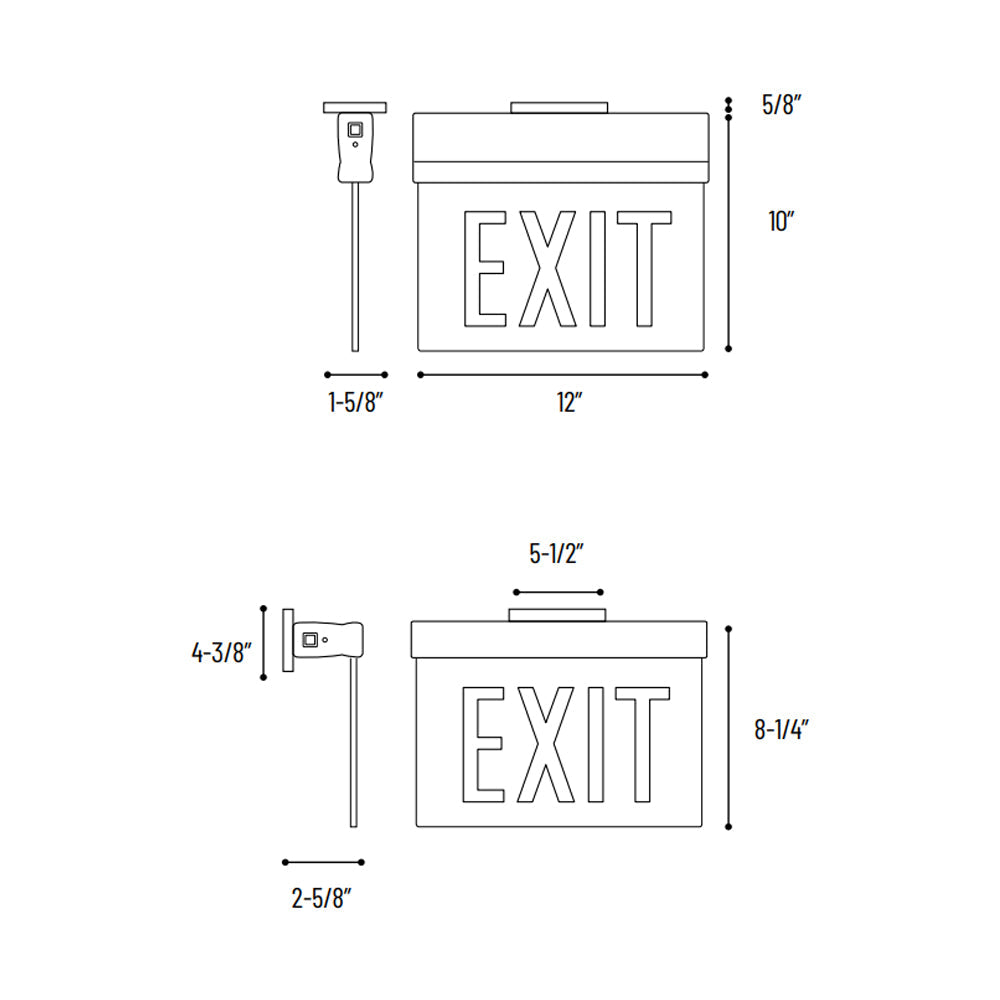

Dimension
- 12" W x 10" H
Shipping Info
