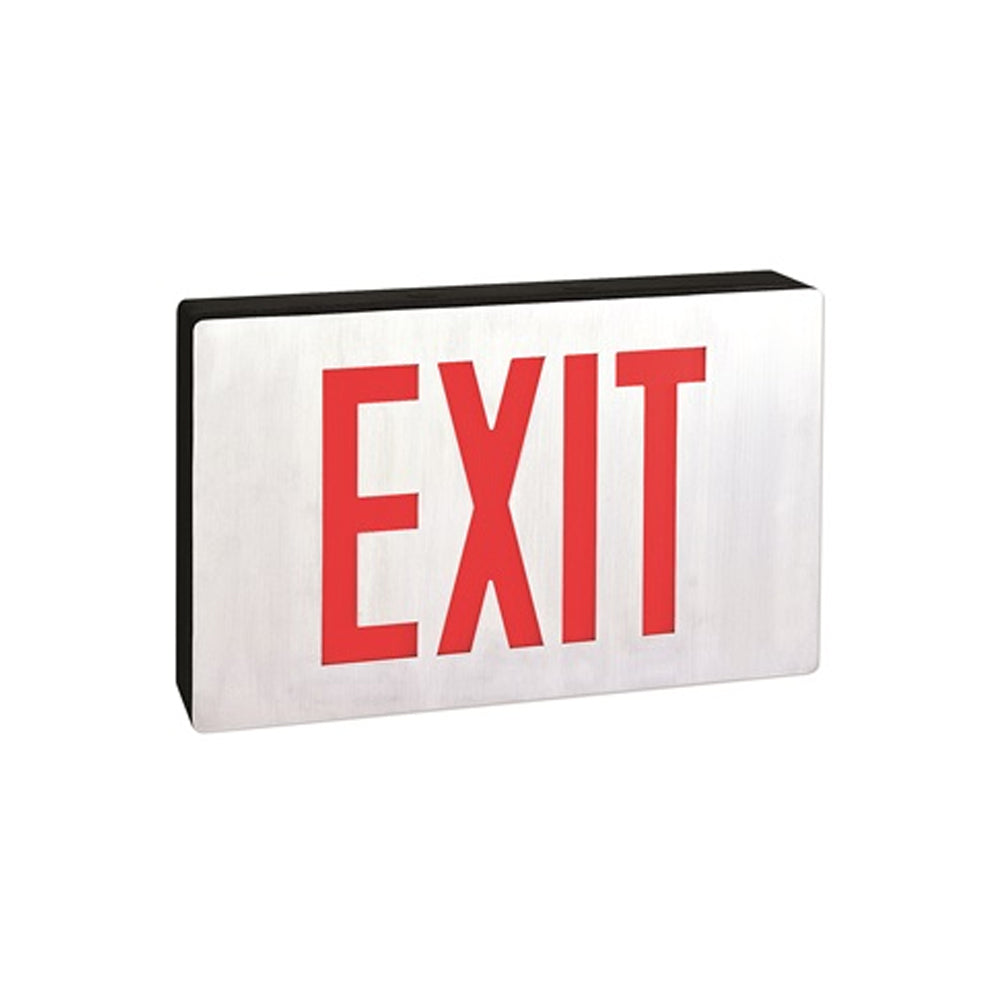

Nora Lighting NX-615-LED Self-Diagnostic Die-Cast Aluminum LED Exit Sign with Battery Back-up

Nora Lighting NX-615-LED Self-Diagnostic Die-Cast Aluminum LED Exit Sign with Battery Back-up

For architectural applications, Nora Lighting offers its low profile, die-cast aluminum LED exit sign with battery backup. Both die-cast faces are brushed to give a simple, yet elegant, effect. In the event of power loss, the LED light sources will remain illuminated at their full light level for 90 minutes. Self Diagnostic feature automatically tests to ensure proper operation.

Electrical

• Voltage: 120V or 277V dual input
• Wattage: 2W
• Light Source: LED
• Operating Temperature: 10°C to 40°C (50°F to 104°F)
• Circuitry Protection: Short circuit protection / Brown-out protection

Construction

• Brushed, die-cast aluminum, low profile, snap-together housing constructed of 20 gauge steel
• Snap-out knockouts for wiring

Face

• Two front faces sent with dual face unit, One face plate sent with single face unit
• 6" high text with color diffusion

Mounting

• Exit sign can be mounted on a wall, side or ceiling mounted (all mounting hardware included)

Battery

• Replaceable Ni-Cad battery (NED-NICAD2) offers 90 minute emergency operation on fully charged battery

Self Diagnostic

• Automatically monitors and tests to ensure proper operation
• Self tests one minute each month, thirty minutes every six months and ninety minutes annually

Labels and Listings

• Voltage: 120V or 277V dual input
• Wattage: 2W
• Light Source: LED
• Operating Temperature: 10°C to 40°C (50°F to 104°F)
• Circuitry Protection: Short circuit protection | Brown-out protection

Dimension

• 12 7/8" W x 8 1/2" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
