Nora Lighting NEX-720-LED Wet Location LED Exit and Emergency Combination with Self Diagnostics and Remote Capability

Nora Lighting NEX-720-LED Wet Location LED Exit and Emergency Combination with Self Diagnostics and Remote Capability

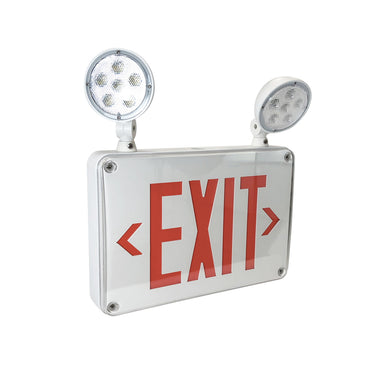

LED exit sign with adjustable dual LED emergency heads. Luminaire is powered by LED sources for maximum life without maintenance. In the event of power loss, both sign and heads will operate for a minimum of 90 minutes. Ideal for egress lighting where splashing, non-corrosive liquids and dripping may occur.

Features

• Fully adjustable 0.75W LED emergency heads
• Universal Mounting - Wall or Side Mounting
• UL Listed and meets or exceeds UL 924, NFPA 70 and NFPA 101 Life Safety Code requirements
• Polycarbonate plastic enclosure with flame retardant and wet location rated
• Self Diagnostic Testing
• Remote Capable with additional battery
• High temperature maintenance free NiCad batteries
• 120V or 277V AC input
• 6" Letters and 3/4" stroke
• Cold weather option includes heating pad to maintain
• operating temperature

Electrical

• Voltage: 120/277VAC 60Hz input
• Normal Operation: 3.2W
• Emergency Operation: 90lm / 0.75W per head
• Batteries: (2) 3.6V Replaceable 1000mAh NiCad
• Recharge Time: 24 hours
• Operating Temperature: 0°C to 50°C (standard) / -25°C to 50°C (cold weather option)
• Remote Capability: 3.6V 1.5W max

Face

• Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating
• Optional second face plate included for exit signs requiring two sides
• Fully illuminaited 6" letters with 3/4" stroke and field selectable directional chevrons included

Emergency

• During loss of power, NiCad battery will operate two adjustable LED emergency heads for 90 minutes and additional battery will operature a remote emergency head
• Batteries requires 24 hours to recharge when power is restored

Mounting

• Mounting hardware included for wall or side mount applications
• Listed for installations indoor, outdoor or wet locations

Brownout Circuit

• Brownout circuit monitors the flow of AC current to the unit and triggers the emergency light once a set reduction of AC power occurs
• This dip in the voltage will cause many fixtures to extinguish causing loss of normal lighting even though a total power failure has not occurred

Short Circuit Protection

• Overload monitoring system is a solid-state circuit which monitors the load and disconnects from the battery should an overload or short circuit occur
• The overload current protection eliminates the need for fuses or circuit breakers for the DC load

Testing

• Luminaire includes manual test button for manual verification the transfer circuit and emergency heads operate correctly
• Luminaire also performs self tests anddiagnostics on battery, charging board, transfer circuit, LED emergency heads, remote heads and exit sign
• If a failure is detected, an indicator LED will blink red until fault is corrected
• A solid green indicator LED indicates no faults and blinked green indicates a test is in progress

Remote Capability

• Luminaire includes an additional 3.6V battery to operate a remote emergency head up to 1.5W for 90 minutes during power loss

Labels and Listings

• UL 924 Listed for Wet Locations (Damp Location rated when used with remote head)
• NFPA 70 & NFPA 101 Life Safety Code
• California Energy Commission (CEC) Compliant
• Title 20 Compliant

Dimension

• 13" W x 8 7/8" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
