Nora Lighting Line Voltage Step Cylinder Track Pack
Nora Lighting Line Voltage Step Cylinder Track Pack
Couldn't load pickup availability
Nora Lighting Line Voltage Step Cylinder Track Pack

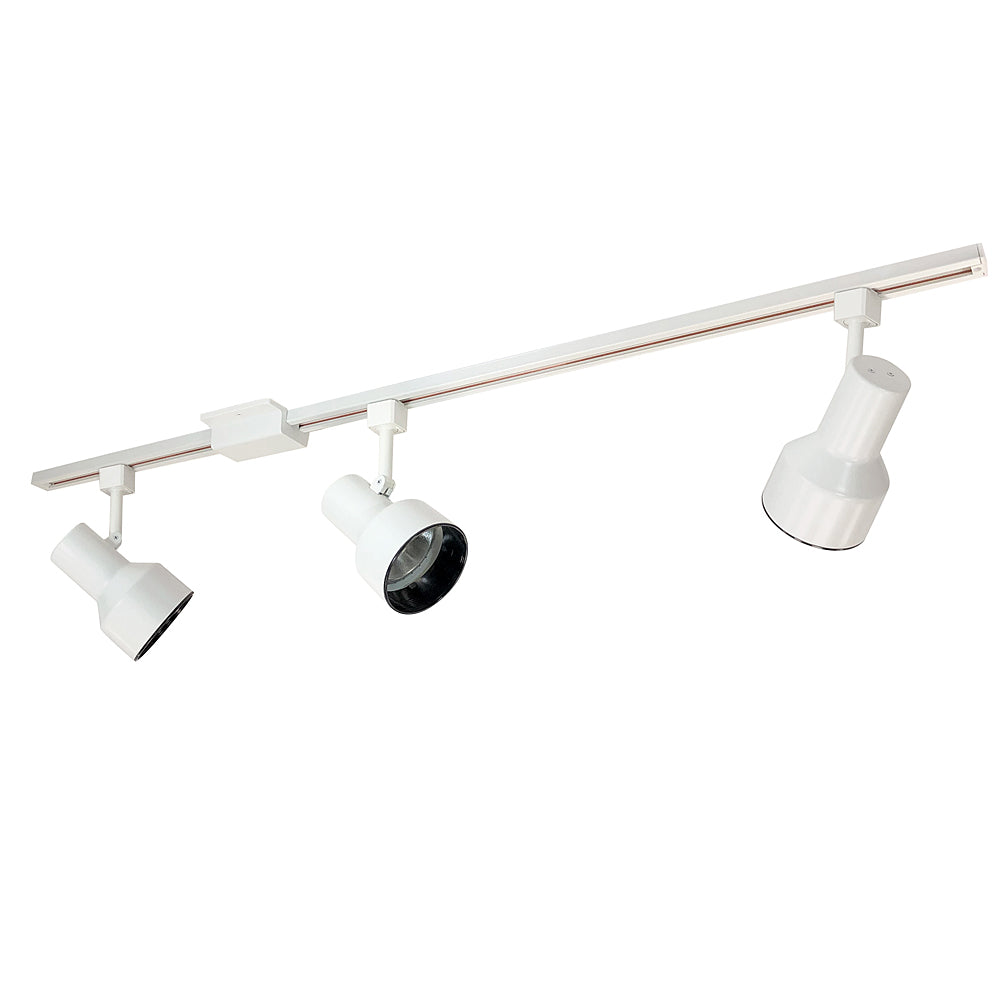

One 4ﾒ single circuit extruded aluminum track with 20-Amp rated flat, solid integral conductors equipped with two end caps. 3 line voltage stepped "continental" styled track heads with black baffles. The track pack also includes a floating canopy feed, which allows the track to connect to an existing outlet box anywhere along the track.
Features
- Deep drawn steel housing for high strength and rigidity
- Completely concealed wiring
- Fully adjustable, firm angle position
- High-strength stainless steel electrical contacts
- For use with 75W R30 lamp
- Includes (1) 4 ft track, (3) step cylinder track fixtures, (1) floating canopy, all mounting hardware and full instructions
- 5-year limited warranty
Finish

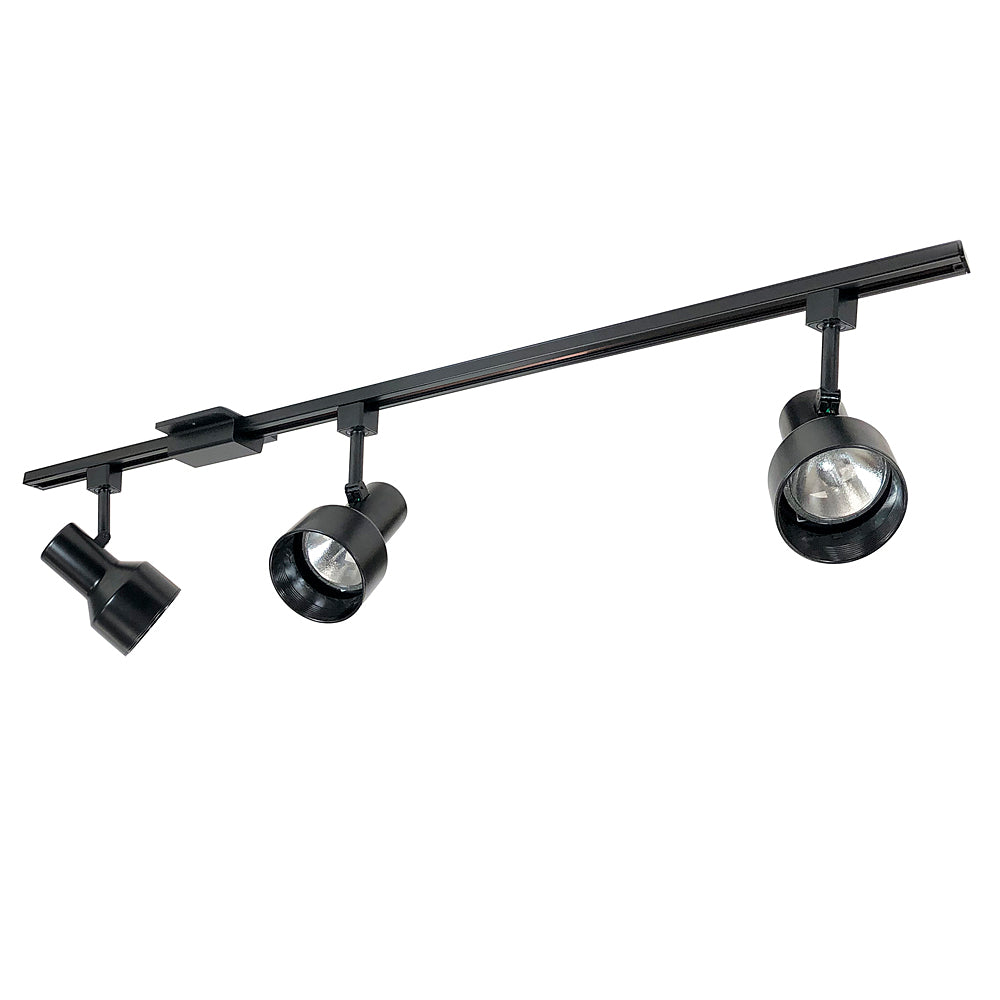

- B= Black
- BZ= Bronze
- W= White
Track Extruction
die cast aluminum construction with 0.045 PVC insulators holding 12-gauge flat conductor wiring. Polarity groove is located on face of track to indicate location of grounding conductor.
Track Head Housing
Deep drawn steel construction with simple, yet decorative design. All edges are softened for aesthetic appearance.
Baffle
Black finished phenolic high rated plastic baffle. Provides finished appearance and assists in eliminating glare from housing interior.
Structural Arm
Extruded aluminum arm connects fixture housing to electrical contact head. Internal tightening mechanism maintains desired lamp aiming angles. Structural arm also functions as wire way, completely concealing lead wire from socket to contact head.
Socket
Porcelain jacketed aluminum screw thread medium base socket.
Contact Head Assembly
Three stainless steel contacts mounted in high heat rated plastic housing.
Electrical
2400 Watts, 120V input, 60Hz.
Dimming
Nora track may be dimmed with any approved incandescent dimmer.
Lamp
75W R/Par30 lamp (not included).
Labels and Listings
- UL Listed as track lighting fitting.
- UL Listed for indoor, dry location.

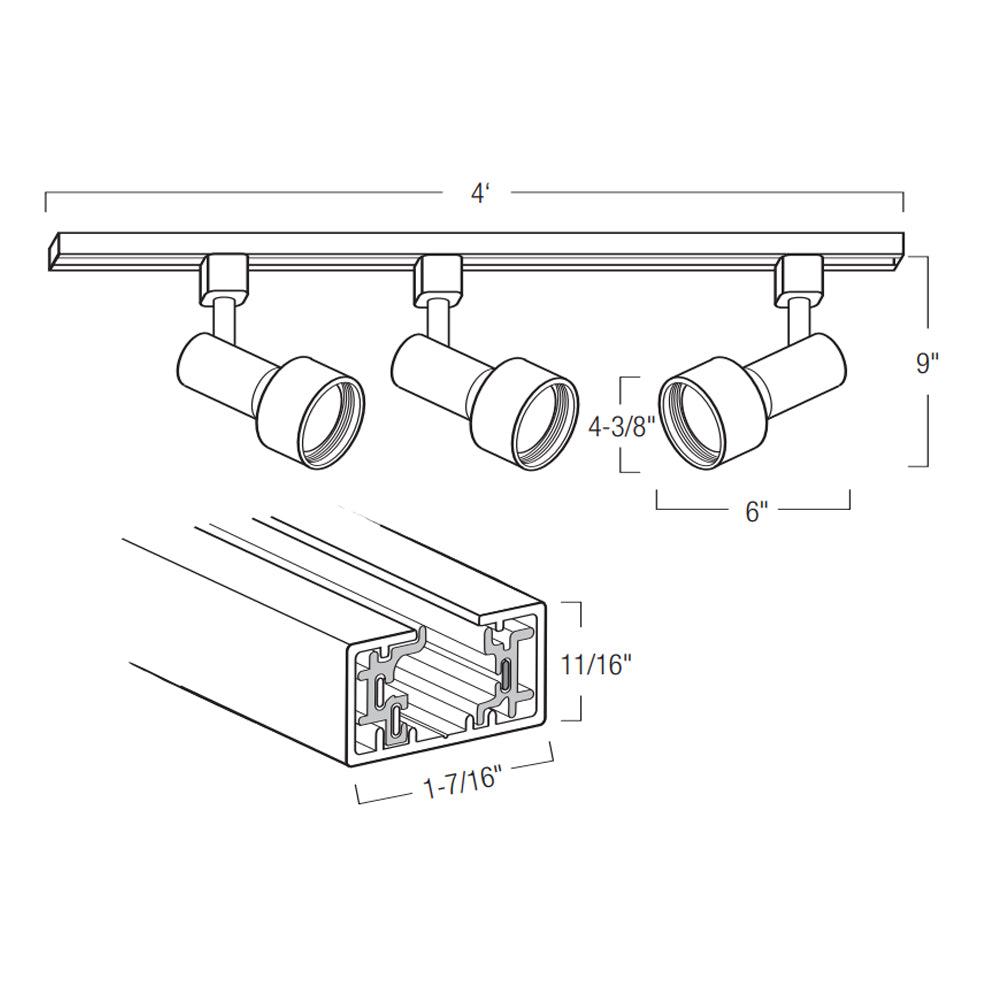

Dimension
- 48" L x 1 7/16" W x 11/16" H(Track)
- 6" L x 4 3/8" Dia. x 9" H(Track Head)
