Nora Lighting

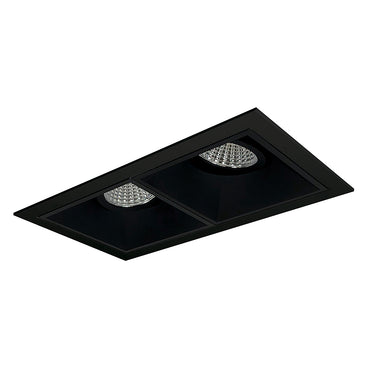

Nora Lighting Iolite MLS Two Head Adjustable Gimbal, Flanged

Nora Lighting Iolite MLS Two Head Adjustable Gimbal, Flanged

Regular price $190.89
Regular price $229.05 Sale price $190.89
Sale Sold out

Nora Lighting Iolite MLS Two Head Adjustable Gimbal, Flanged

Endless possibilities with Iolite multipleメs functionality and architectural aesthetics. Iolite multiple recessed family consist of one to three independently adjustable heads, variety of beam distributions and multiple reflector options. Iolite multiple series is a perfect solution for most retail, hospitality and commercial applications.

Features

  • Trimless of Flanged appearance
  • One to three head configurations
  • Three optics included with each trim type (Premium TIR optics available)
  • Customizable reflector options
  • Housing includes individual drivers for each module
  • Comfort Dim (warm dim) also available in 800lm only
  • Triac, ELV or 0-10V dimming
  • 5-Year Limited Warranty

Flange Finish

  • B = Black
  • MPW = Matte Powder White

Trim Finish

  • B = Black
  • HZ = Haze
  • MPW = Matte Powder White

Housing
0.0475" Galvanized steel housing with quick connects from each driver for ease of installation. Housing accepts standard ceiling thickness up to 1-1/2" may vary depending on ceiling type (up to 1" ceiling thickness when used with NMIO-W).

Air Flow Restriction
Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.

Clearance
"IC" Insulated ceiling housings are direct contact rated; no minimum clearance is required. Not to be used in direct contact with spray foam insulation.

Bar Hangers
Two 13-7/8" to 25" adjustable bar hangers with captive nails are included with the housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. "L"-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.

Junction Box
Pre-wired 40 cubic inch 0.0475" thick galvanized steel, with six 1/2" knockouts. Leads are #18AWG wire. Maximum of 8 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box (max. of 4 with wall wash trims).

Optics
Each reflector includes field changeable optics (spot, narrow flood and flood - preinstalled). Premium 15° and 25° TIR optics are also available. (Note: TIR optics are not compatible with Comfort Dim)

Fixed Downlight
Fixed downlight delivers over 1300lm in four finishes; Black (B), Black interior / Matte Powder White (BMPW - Note: adjustable and wall wash reflectors mixed with BMPW will be MPW), Haze (HZ) or Matte Powder White (MPW).

Adjustable Snoot
Rotates 359° horizontally and pivots 20° while delivering over 1100 lumens.

Adjustable Gimbal
Rotates 359° horizontally and pivots 38° while delivering over 1300 lumens.

Wall Wash
Fixed wall wash reflector aims LED modules at optimal angle for maximum light distribution along wall surfaces.

Blank Plate
Blank plate is used in conjuction with two or three head configurations where a blank head is needed.

Input Voltage
120-277V

Lumens / Wattage
1000lm / 12W per head (Comfort Dim is 800lm per head) (Delivered lumens will vary depending on reflector, CCT, beam spread and finish)

Color Temperature
2700K, 3000K, 3500K, 4000K or 5000K

Optics (included)
25° Spot, 38° Narrow Flood, 60° Flood

Comfort Dim
Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.

Operating Temp.
0°-45ᄎC max. ambient temp.

Dimming
Triac, ELV or 0-10V

Labels and Listings

  • cULus Listed for Damp Location
  • ENERGY STAR certified (wall wash not certified)
  • Certified to the high efficacy requirements of California Title 24 JA8-2019

Dimension
8 1/8" L x 4 9/16" W x 7" H
