Nora Lighting BR30/PAR30 Step Cylinder with Black Baffle

Nora Lighting BR30/PAR30 Step Cylinder with Black Baffle

Line voltage stepped "continental" style housing includes a structural arm to provide full adjustment of light source for special aiming and completely conceals wire lead from socket to contact head. Internal mechanism allows for adjustment and resists angle degradation.

Features

• Die cast aluminum provies superior strength and rigidity
• Black baffle eliminates glare and adds finished touch
• One or two circuit track capable
• Accepts LED lamps
• 5-year limited warranty

Finish

• B/A = Black
• BZ = Bronze
• W/A = White

Housing
Deep drawn steel construction with simple, yet decorative design. All edges are softened for aesthetic appearance.

Baffle
Black finished phenolic high heat rated plastic baffle, provides finished appearance and assists in eliminating glare from housing interior.

Structural Arm
Extruded aluminum arm connects fixture housing to electrical contact head. Internal tightening mechanism maintains desired lamp aiming angles. Structural arm also functions as wire way, completely concealing lead wire from socket to contact head.

Voltage
120V input

Socket
Medium base

Lamp
75W BR/PAR30 max. (not included)

One / Two Circuit Conversion
Positive contact (opposite neutral and ground contacts) is preset to "down" position at factory but may be raised to the higher position to install onto the second circuit of Nora Lighting NT- 2300 series two-circuit track.

Labels and Listings
UL Listed

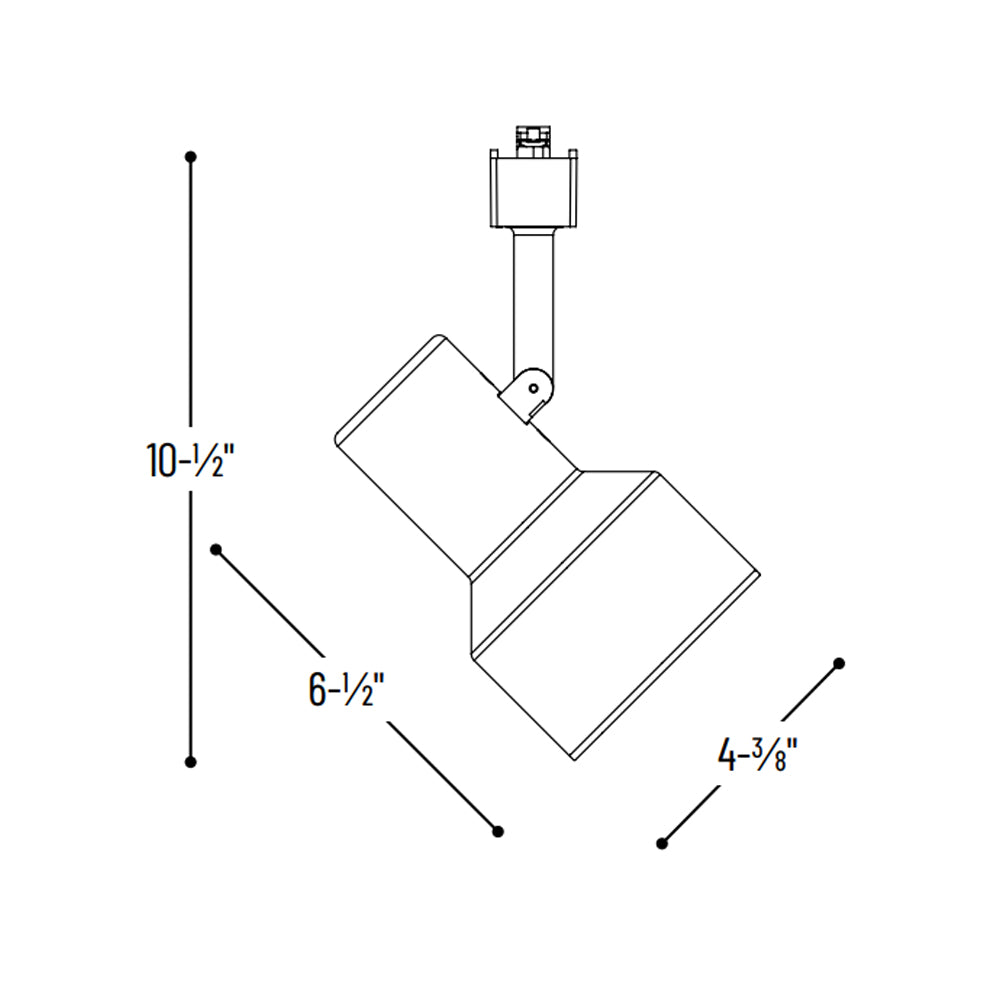

Dimension
6 1/2" L x 4 3/8" Dia. x 10 1/2" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
