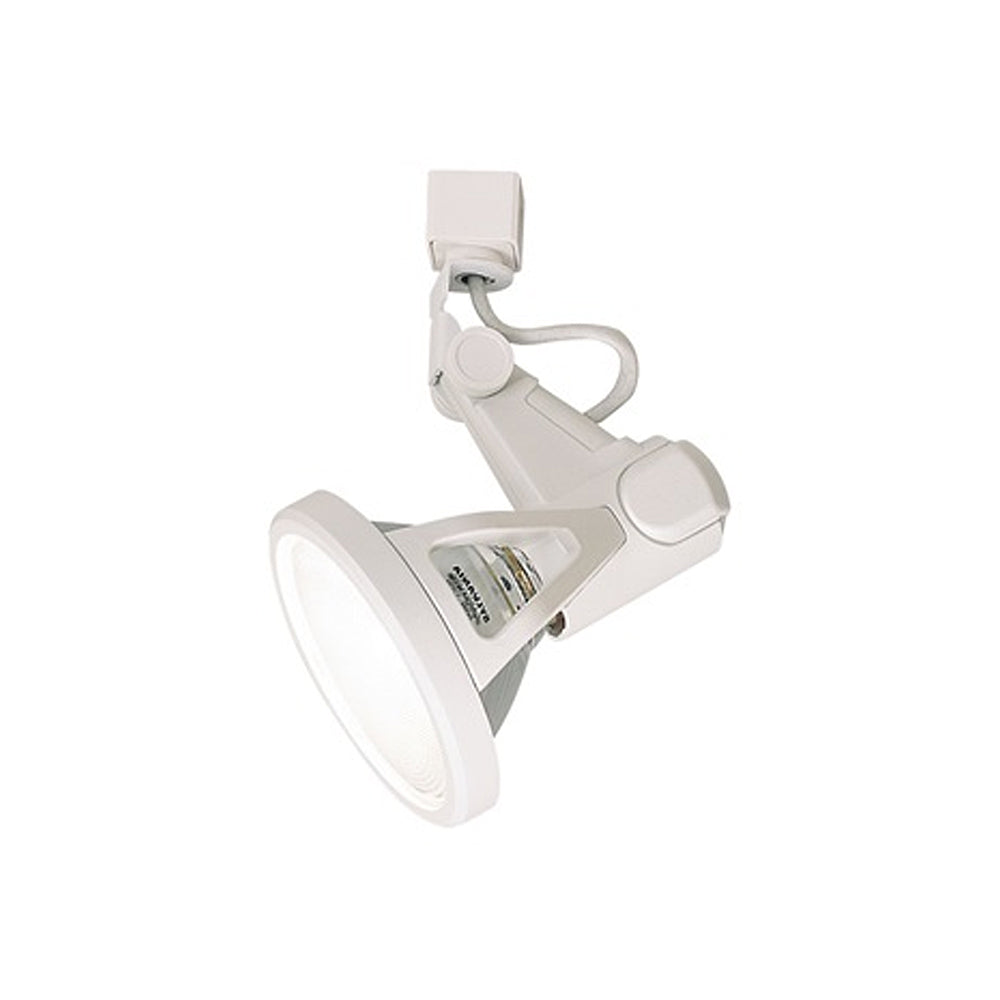

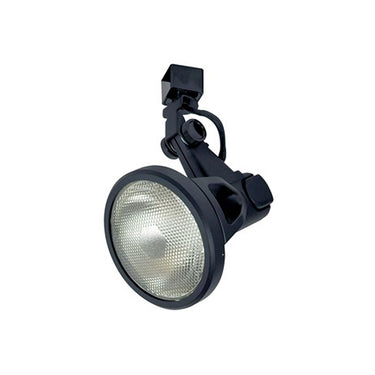

Nora Lighting Belgiumﾙ Die-Cast PAR38 Front Loading Gimbal

Nora Lighting Belgiumﾙ Die-Cast PAR38 Front Loading Gimbal

Line voltage front-loading gimbal fixture. Heavy die-cast construction provides superior strength, rigidty, and heat dissipation. Locking front ring protects lamp and enhances appearance. Front loading capability provides quick, easy lamp maintenance with minimal interference with original fixture aiming.

Features

• Heavy die-cast construction
• Die-cast Lamp Locking Ring
• Fully adjustable, firm angle position
• High-strength stainless steel electrical contacts
• One or two circuit track capable
• Accepts LED lamps
• 5-year limited warranty

Finish

• B= Black
• S= Silver
• W= White

Housing
0.09" Die-cast aluminum two-piece housing with modernistic detail secured together with finished Allen-head screw. Two arms constructed from thick 0.050" die-cast aluminum extension from the housing and contain molds to secure 0.25" die-cast aluminum locking ring.

Structural Arm
0.10" "L" Steel bracket connects fixture housing to electrical contact head. Two finished plastic knobs allow user to lock fixture position to desired angles.

Voltage
120V input

Socket
Medium base

Lamp
90W PAR38 max. (not included)

One / Two Circuit Conversion
Positive contact (opposite neutral and ground contacts) is preset to "down" position at factory but may be raised to the higher position to install onto the second circuit of Nora Lighting NT- 2300 series two-circuit track.

Labels and Listings
UL Listed

Dimension
6 3/4" L x 5 3/8" Dia. x 10 1/2" H

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
