Nora Lighting 8" Theia LED Downlight with Selectable CCT, up to 2100lm
Nora Lighting 8" Theia LED Downlight with Selectable CCT, up to 2100lm
Couldn't load pickup availability
Nora Lighting 8" Theia LED Downlight with Selectable CCT, up to 2100lm
Theia LED luminaires are commercial grade downlights designed for easy installation into new construction or remodel applications. Tunable white luminaires include an integral color temperature switch located on the junction box of each luminaire with a quick connect that allows for easy disconnect and mounting in the ceiling.
Features
- Five different color temperatures in one luminaire
- No housing required and includes junction box with class 2 driver
- Quick installation and cost savings
- Junction box includes color temperature switch
- IC Air-Tight rated
- Junction box includes color temperatures switch
- Five color temperatures in each fixture (2700K / 3000K / 3500K / 4000K / 5000K)
- Triac or ELV dimming
- 5-year Limited Warranty
Finish
MPW = Matte Powder White
Construction
Aluminum luminaire with spring clips for easy installation. Gasket included for air-tight and wet location listing without additional caulking.
Air Flow Restriction
Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Junction Box
Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes four 1/2" knockouts, two keyhole slots and snap on cover. Maximum of 4 No. 12 AWG or Maximum of 6 No. 14 AWG through branch circuit conductor suitable for 90°C permitted in box. [Fixture wire length: 7-1/2" and Junction box wire length: 10-1/2"]
Mounting
No housing is required, two tensions steel spring clips secure luminaires to the ceiling. Luminaires accept ceiling thicknesses from 3/8" to 5/8". New construction frame-in or plate are available (ordered separately), not required.
Minimum clearance
"IC" Insulated ceiling luminaires are direct contact rated; no minimum clearance is required.
Input Voltage
120Vac, 0.197A, 60Hz
Lumens / Wattage
Up to 2100lm / 22W
Beam Spread
94° Wide Flood
Color Temperature
Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (Note: Preset to 3000K)
CRI
90+ CRI
Operating Temp.
0°C to 35°C ambient temperature
Labels and Listings
- cETLus Listed for Wet location
- ENERGY STAR certified
- Certified to the high efficacy requirements of California Title 24 JA8-2019
- FCC Compliant

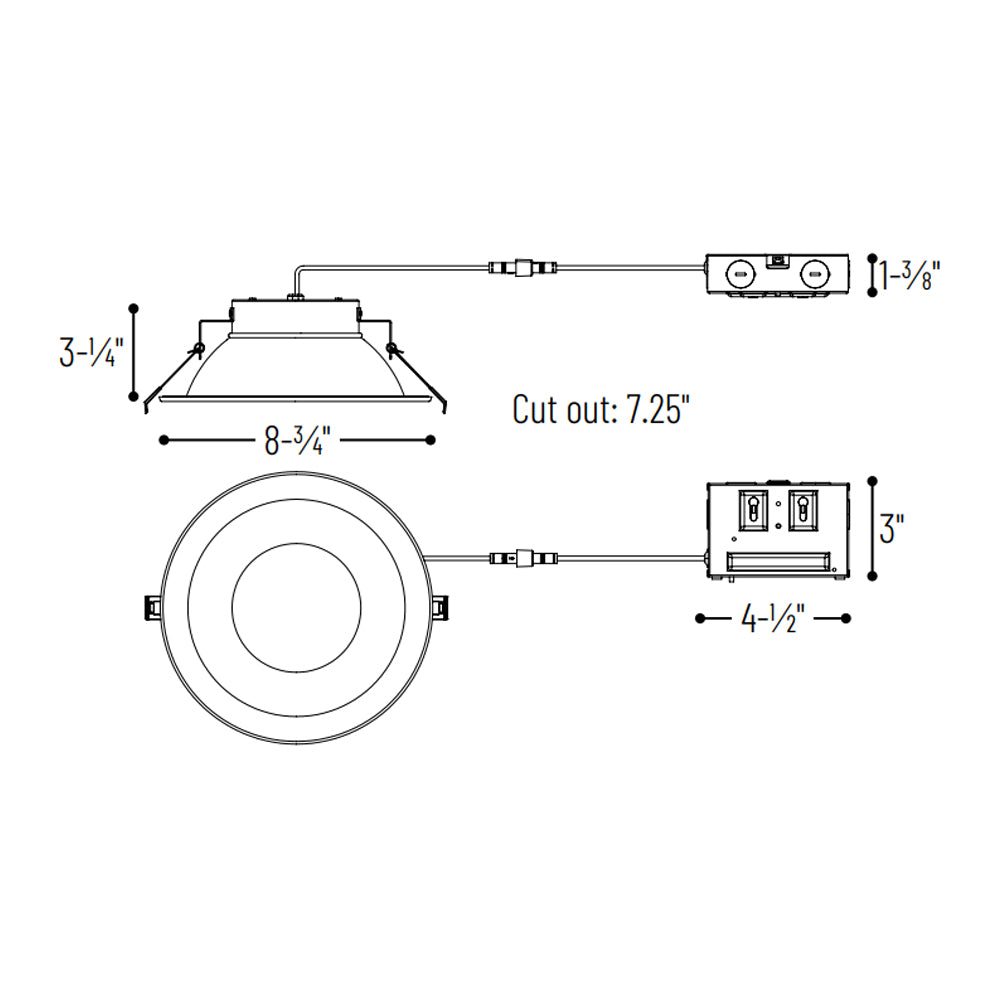

Dimension
8 3/4" Dia. x 3 1/4" H
Shipping Info
Usually ships in 5 to 7 business days. Please to find out the availability of this item.
