Nora Lighting 8" Quartz LED Downlight with Selectable Lumens & CCT, up to 2950lm
Nora Lighting 8" Quartz LED Downlight with Selectable Lumens & CCT, up to 2950lm
Couldn't load pickup availability
Nora Lighting 8" Quartz LED Downlight with Selectable Lumens & CCT, up to 2950lm
Quartz Series series is an architectural and commercial grade LED high lumen downlight. Each luminaire includes two tunable switches; Selectable Lumens allows the end user to determine the wattage input & Selectable CCT allows for changing the color temperature appearance. Reflectors include two tension steel spring clips, which allow the luminaires to install without any framein or housing for an easy installation.
Features
- Can-less installation (No frame-in or housing required)
- Easy installation for retrofit, remodel or new construction applications
- Selectable Lumen switch changes output from 1750lm to 2950lm
- Selectable CCT switch changes color temperature from 3000K / 3500K / 4000K
- Field changeable reflector allows for easy customization
- 120-277V input and 0-10V dimming
- 5-year Limited Warranty
Finish
MPW = Matte Powder White
Reflector
: Aluminum spun reflector with deep set diffused lens for excellent visual comfort while providing high lumen output. Each reflector comes standard with matte powder white finish, optional haze and diffused snap-in reflectors are available and field changeable.
Housings
Compatible with most 5" and 6" IC and non-IC housings by Nora and others.
Tunable Switches
Each luminaire includes two switches on the top of the driver enclosure. Selectable Lumen switch changes the lumen output and wattage. Seletable CCT switch changes the color temperature.
Minimum Clearances
Non-IC luminaire requires a minimum clearance of 3" from thermal insulation and 1/2" from adjacent building components.
Mounting
Pre-wired 4" junction box with through branch circuit wiring (3 in / 3 out). No housing is required, two tensions steel spring clips accommodate ceiling thickness from 1/2" to 1-1/2". New construction frame-in (NQZ-8R-F) and oversize ring (NQZ-8OR-MPW) accessories are available.
Lumens / Wattage
Selectable Lumens (1750lm / 21W, 2100lm / 25W, 2600lm / 30W and 2950lm / 34W)
Color Temperature
3000K, 3500K, 4000K and 5000K
Beam Spread
89° Wide Flood
Input Voltage
120-277V
CRI
90+ CRI
Dimming
Dimmable down to 10% with 0-10V dimmer
Operating Temp.
0°C - 45°C (0°C-35°C with emergency option)
Optional Emergency
Luminaire includes pre-wired 120-277V emergency battery with remote test switch. Battery operates luminaire at 7W for 90 minute emergency operation with a fully charged battery.
Labels and Listings
- cULus Listed for Wet Locations
- ENERGY STAR certified
- FCC compliant

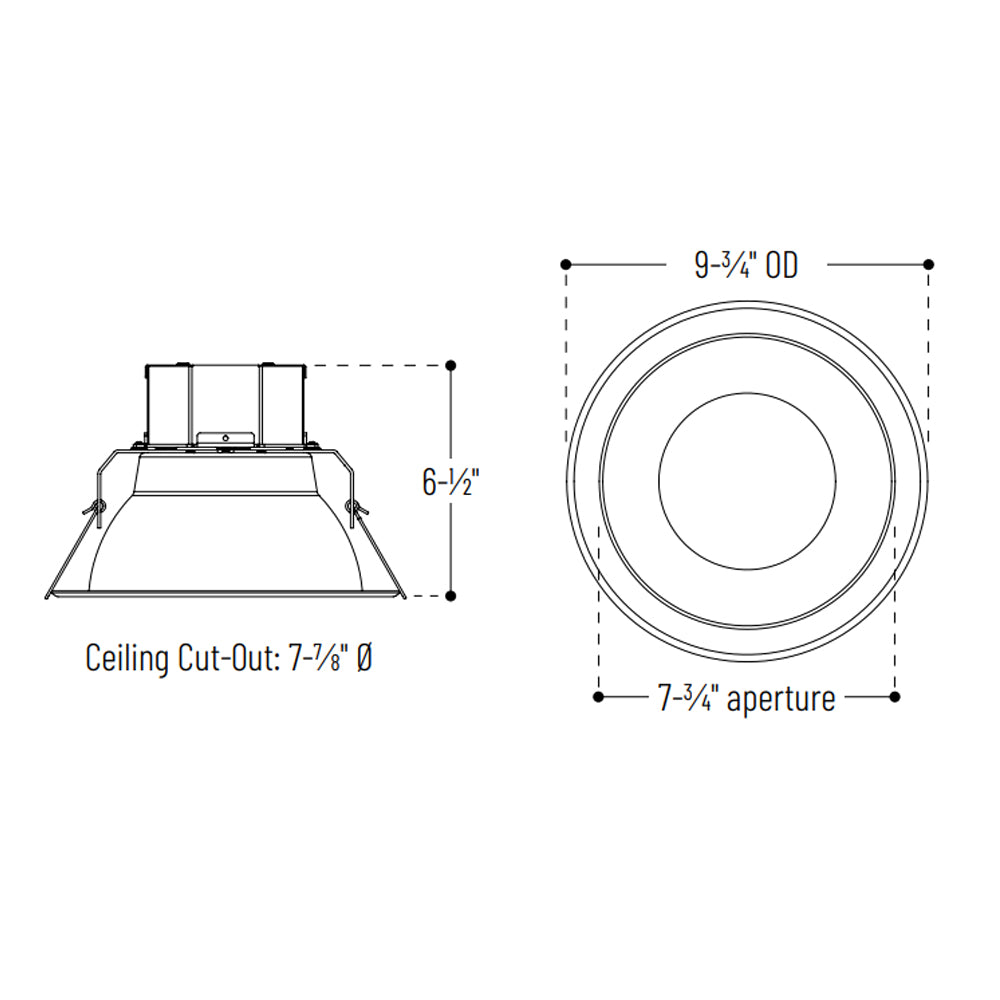

Dimension
9 3/4" Dia. x 6 1/2" H
Shipping Info
Usually ships in 5 to 7 business days. Please to find out the availability of this item.
