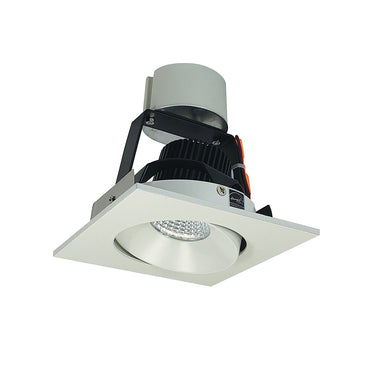

Nora Lighting 4" Iolite Retrofit, Square Adjustable Cone Reflector 5000K
Nora Lighting 4" Iolite Retrofit, Square Adjustable Cone Reflector 5000K
Nora Lighting 4" Iolite Retrofit, Square Adjustable Cone Reflector 5000K
4" Iolite retrofit reflectors can be specified for use in new construction or remodel applications. The die-cast aluminum reflectors are available in square and round designs, with sharp and clean edges. Reflectors ships with a 60° optic installed, 25° and 38° optics are included and can be easily changed in the field. The reflectors produce 800lm or 1000lm output at 90+ CRI, utilizing 12W.
Features
- Retrofit existing 4" recessed housings
- Comfort Dim (warm dimming) also available in 800lm only
- 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI
- 60° (Flood) optic installed, 38° (Narrow flood) and 25° (Spot) optics included
- 5-year limited warranty
Finish
- BW = Black / White
- BZ = Bronze / Bronze
- HW = Haze / White
- MPW = Matte Powder White
- NN = Natural Metal / Natural Metal
- WW = White / White
Construction
Reflectors are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting
Reflector includes friction blades to mount securely in most 4" housings.
Reflectors
NIR-4RC / NIR-4SC: Regressed cone reflectors optimize visual cut-off and adjust up to 40ᄎ (varies by housing).
Field Changeable Optics
Each reflector comes with a 60ᄎ (installed), 38ᄎ and 25ᄎ optics (included). Premium TIR optics are also available in 15ᄎ or 25ᄎ.
Retrofit
Iolite retrofit series includes medium base screwsocket adapter (NRA-211SM) for retrofitting into existing medium base downlight housings. GU24 socket adapter is available for use with GU24 housings, must specify NRA-212SM.
Input Voltage
120VAC
Lumens / Wattage
800lm / 12W
Color Temperature
5000K
CRI
90+ CRI
Operating Temperature
0°C to 40°C ambient temperature
Comfort Dim
Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.
Dimming
Triac or ELV
Labels and Listings
- cULus classified for Damp Location (Adjustable)
- cULus classified for Wet Location (Non-Adjustable)
- ENERGY STAR certified
- RoHS Compliant
Dimension
5" W x 4 3/4" H
