Nora Lighting

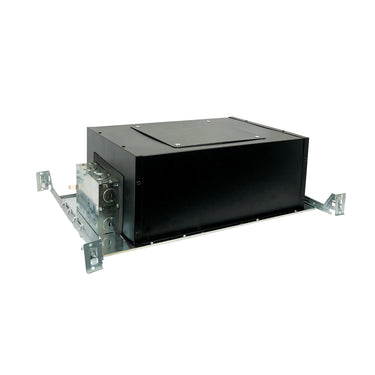

Nora Lighting 4" Iolite PLUS LED Dedicated IC Air-Tight New Construction Housing, 2500lm

Nora Lighting 4" Iolite PLUS LED Dedicated IC Air-Tight New Construction Housing, 2500lm

Regular price $120.00
Regular price $172.69 Sale price $120.00
Sale Sold out

Nora Lighting 4" Iolite PLUS LED Dedicated IC Air-Tight New Construction Housing, 2500lm

New construction housing for use with Square PLUS trimless only. Rated for insulated ceilings and can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. Patented design allows for easy, tool-less removal of the driver.

Features

  • IC Air-Tight rated
  • Quick connects provided for easy installation
  • Dimmable
  • 24-1/2" hanger bars with alignment feet and nails included
  • 5-year limited warranty

Compatible Iolite Trimless

  • NIO-4PSTLA: 4" Iolite PLUS Square LED Trimless Adjustable
  • NIO-4PSTLNDC: 4" Iolite PLUS Square LED Trimless Downlight

Required Trimless Mud Plate

  • NIO-TLMR-4PS: Trimless Mud Plate for 4? Iolite Square PLUS Trimless

Housing
0.040" Aluminum housing can be installed in ceilings up to 1/2" thick.

Patented Driver Assembly
Allows driver to slide out of housing without tools from the room side. Housing includes a removable top cover for driver maintenance above the ceiling

Air Flow Restriction
Meets requirments of Air-Tight (AT)<2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.

Clearance
"IC" Insulated ceiling housings are directcontact rated. Not to be used in direct contact with spray foam insulation.

Bar Hangers
Two 13-3/4" to 24-1/2" adjustable bar hangerswith captive nails are included on housing. Bar hangersare parallel to junction box, but can be repositioned 90°perpendicular to junction box if desired. "L"-shaped barhanger foot to align to bottom of construction joist. A T-barnotch allows for easy installation in a suspended ceiling.

Junction Box
Pre-wired 25 cubic inch 0.064" thickgalvanized steel, with seven 1/2" knockouts, four Romex®pryouts, and snap on covers. All leads are #18AWG wire,the ground wire is connected to the bottom, and quickconnectors are supplied on all leads. Maximum of 8 no. 12AWG through branch circuit conductors suitable for at least90°C permitted in junction box. Junction box is accessiblefrom the room side through housing opening.

Emergency
Housing can be specified with connectionsfor emergency battery installation. Requires accessabove the ceiling. Must specify battery with remote testswitch separately, NEPK-07LEDUNV. Note: Emergency is not compatible with chicago plenum housings.

Electrical

  • Input Voltage: 120/277V
  • Input Power: 28W
  • Power Factor: =0.90
  • Dimming: Triac / ELV / 0-10V
  • Operating Temp.: 25°C max.

Labels / Listing

  • cULus Listed for Damp Location (Wet Location when used with compatible trim)
  • RoHS Compliant
  • FCC compliant
  • Patent #D824567S
  • Meets or exceeds ASTM-283 Air-Tight requirements
