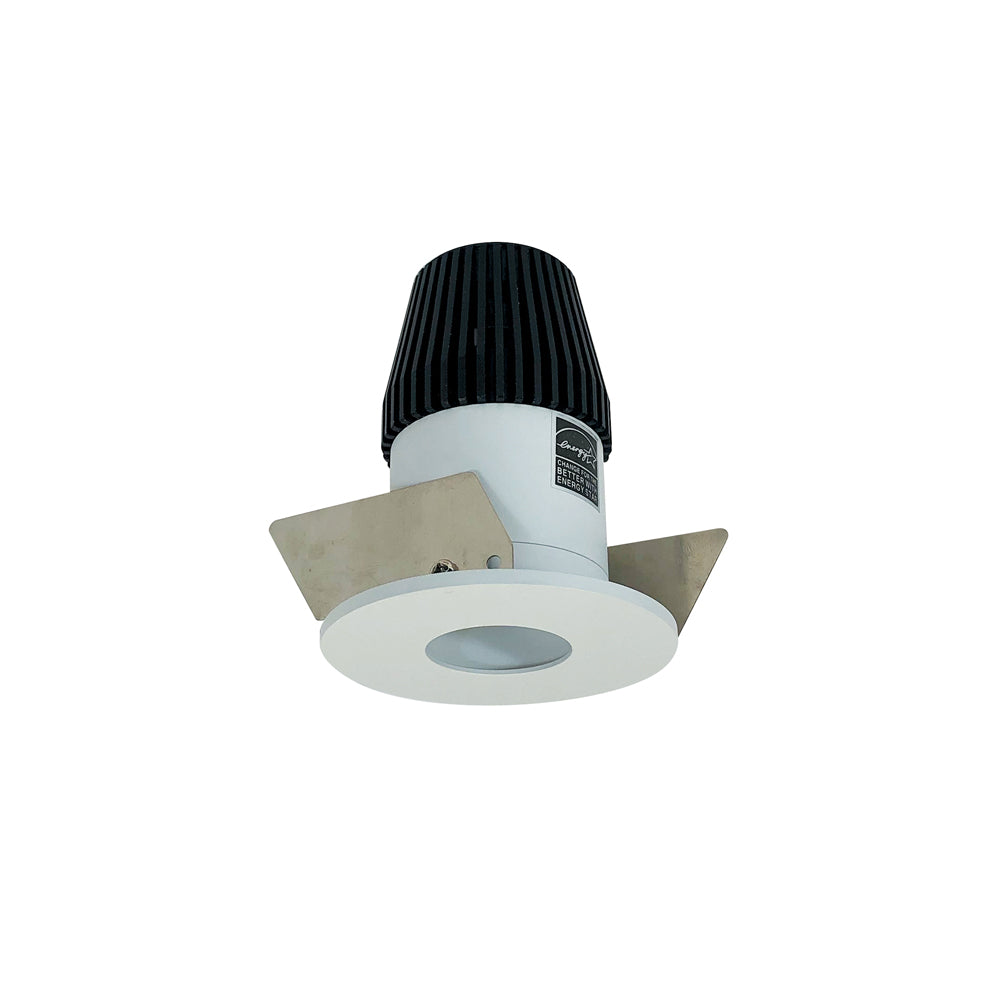

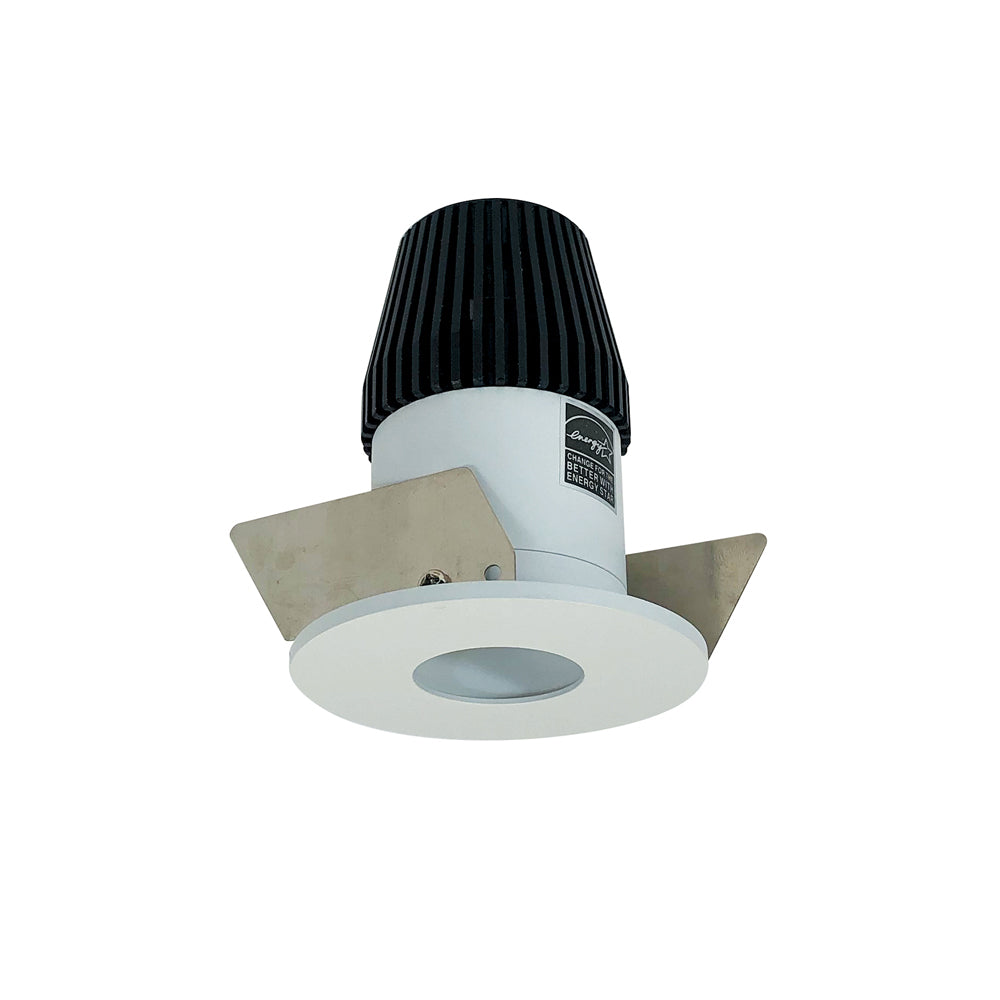

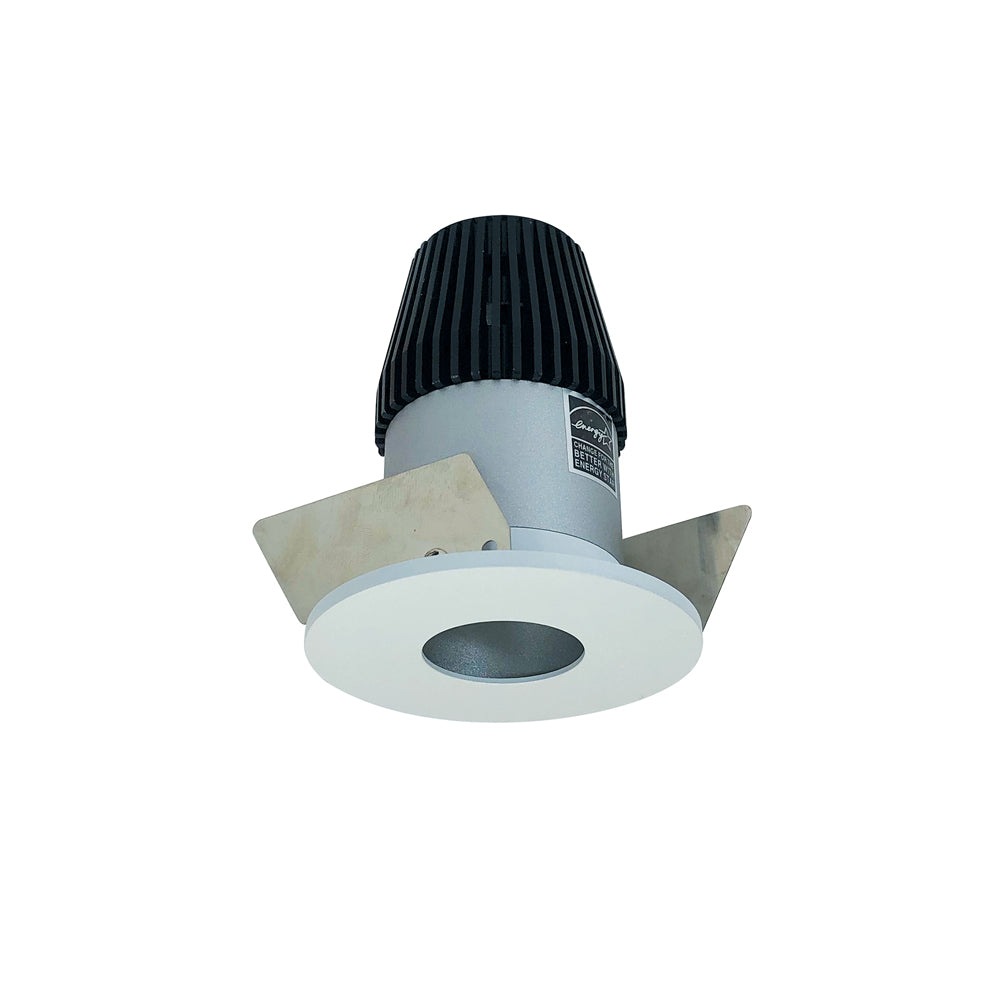

Nora Lighting 1" Iolite, Round Pinhole BWF Reflector
Nora Lighting 1" Iolite, Round Pinhole BWF Reflector
Couldn't load pickup availability
Nora Lighting 1" Iolite, Round Pinhole BWF Reflector
1" Iolite BWF reflectors can be specified for use with Iolite new construction or remodel housings. Pinhole reflector focuses the beam spread through small opening.
Features
- 600lm / 9W or 10W
- 2700K, 3000K, 3500K, 4000K, 5000K @ 90+ CRI
- Comfort Dim Technology
- 60° (Flood) optic installed, 40° (Narrow flood) and 20° (Spot) optics included
- 5-year limited warranty
Finish

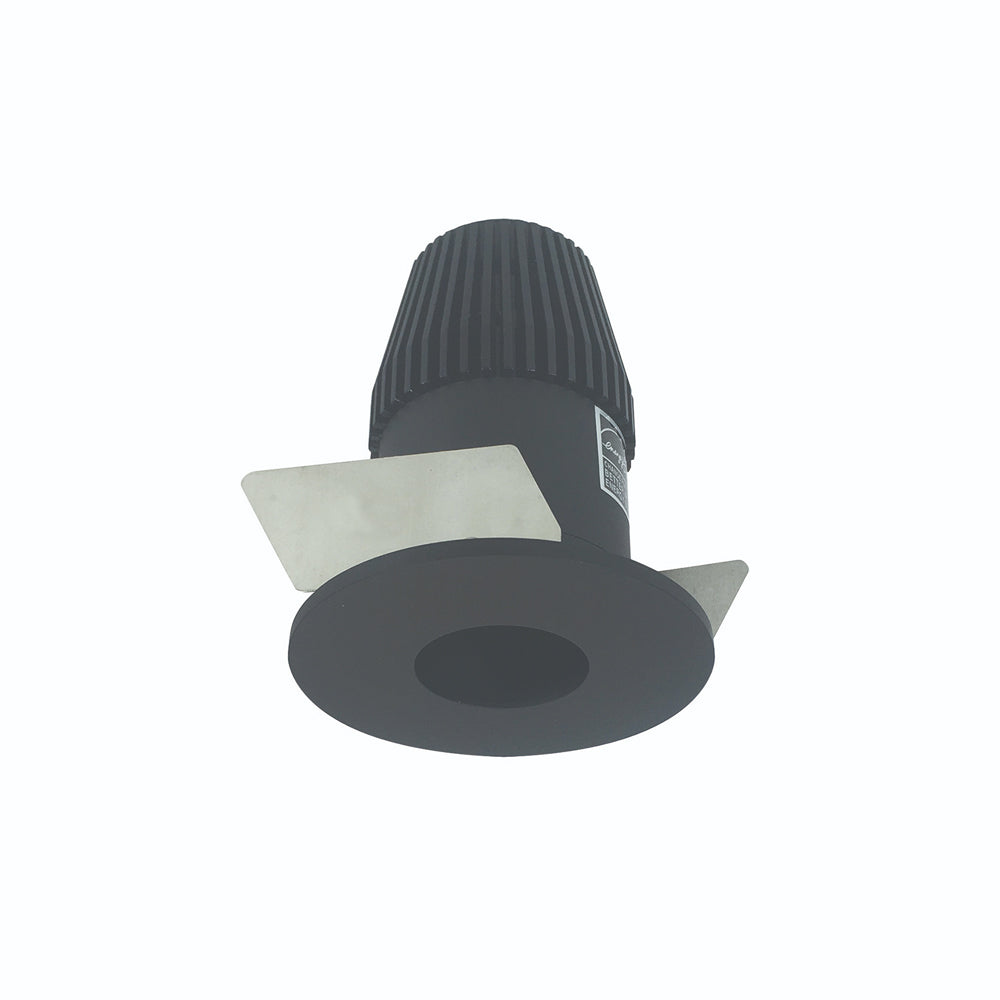

- BB = Black / Black
- BMPW = Black / Matte Powder White
- HZMPW = Haze / Matte Powder White
- MPW = Matte Powder White
Construction
Reflectors are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.
Mounting
Reflector includes friction blades to mount securely to housing.
Optics
Each reflector comes with a 60° (installed), 40° and 20° optics (included).
Lumens / Wattage
600lm / wattage varies by housing (9W / LE3 or 10W / LE4)
CRI
90+ CRI
Operating Temperature
0°C to 40°C ambient temperature
Comfort Dim
Comfort Dim color tunes the temperature from a bright 3000K, to a romantic and comfortable 1900K on a gradual, even curve.
Dimming
Specified by housing
Labels and Listings
- cULus Listed for Wet Locations
- ENERGY STAR certified
- 5-Year Limited Warranty
- RoHS Compliant
- Certified to the high efficacy requirements of California Title 24 JA8-2019

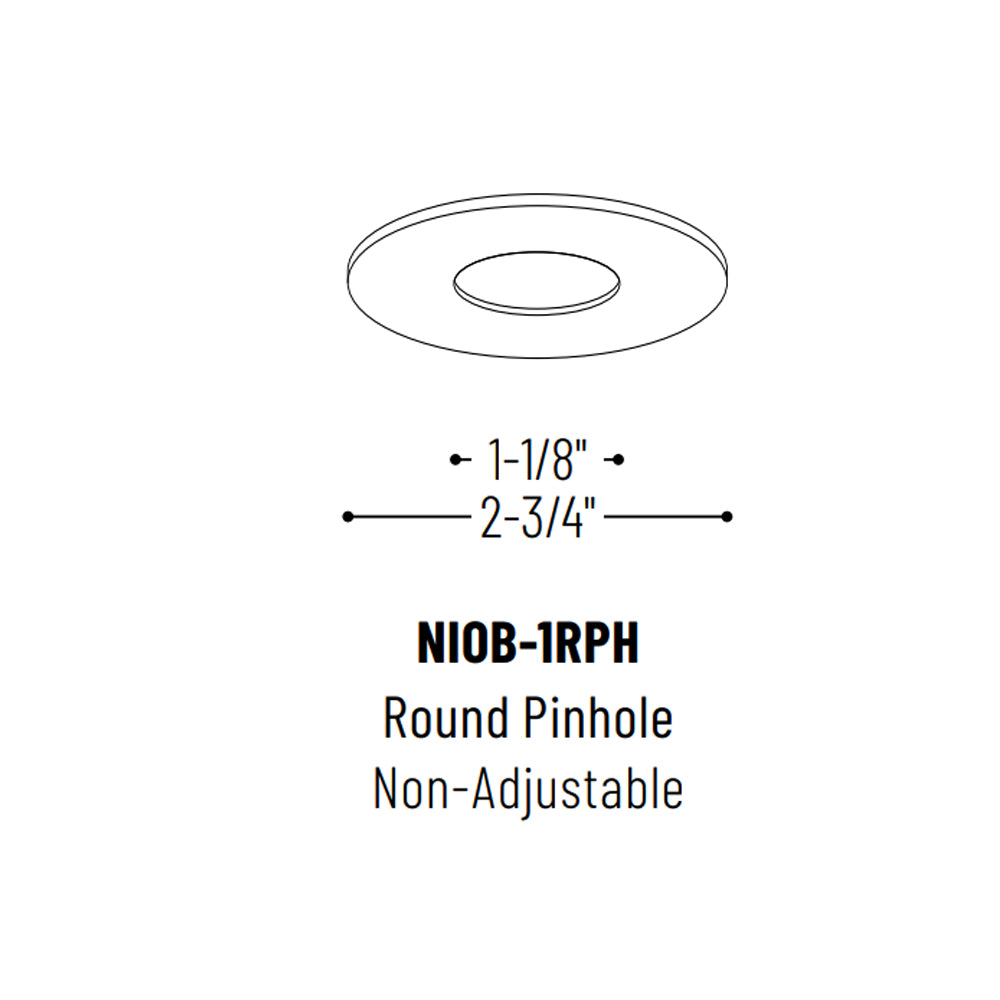

Dimension
2-3/4"
Shipping Info
Usually ships in 5 to 7 business days. Please to find out the availability of this item.
