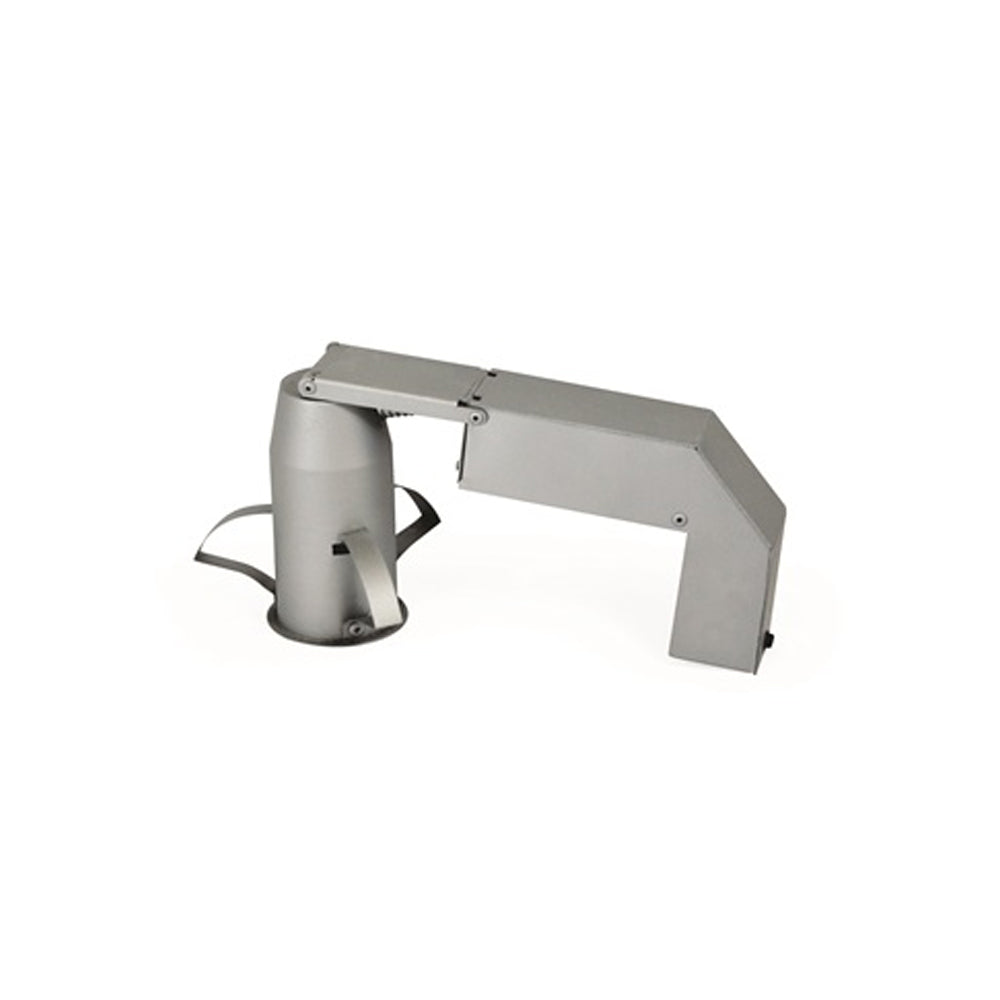

Nora Lighting 1" Iolite LED Dedicated IC Air-Tight Remodel Housing, 600lm

Nora Lighting 1" Iolite LED Dedicated IC Air-Tight Remodel Housing, 600lm

Dedicated remodel housing for 1? Iolite reflectors or 1? iPOINT monopoints. Rated for use in insulated ceilings and can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling.

Features

• IC Air-Tight rated
• Quick connects provided for easy installation
• Dimmable
• 24-1/2" hanger bars with alignment feet and nails included
• cULus listed for damp location (wet location when used with specific reflectors)
• 5-year limited warranty

COMPATIBLE TRIMS & MONOPOINTS

• NIOB-1RNB WETWET 1" Round Bullnose (BWF)
• NIOB-1SNB WETWET 1" Square Bullnose (BWF)
• NIOB-1RNG WETWET 1" Round Straight Regress (BWF)
• NIOB-1SNG WETWET 1" Square Straight Regress (BWF)
• NIOB-1RPH WETWET 1" Round Pinhole (BWF)
• NIOB-1RSL 1" Round Adj. Slot Aperture (BWF)
• NIOP-1RCY 1" iPOINT Cylinder
• NIOP-1RTC 1" iPOINT Cone

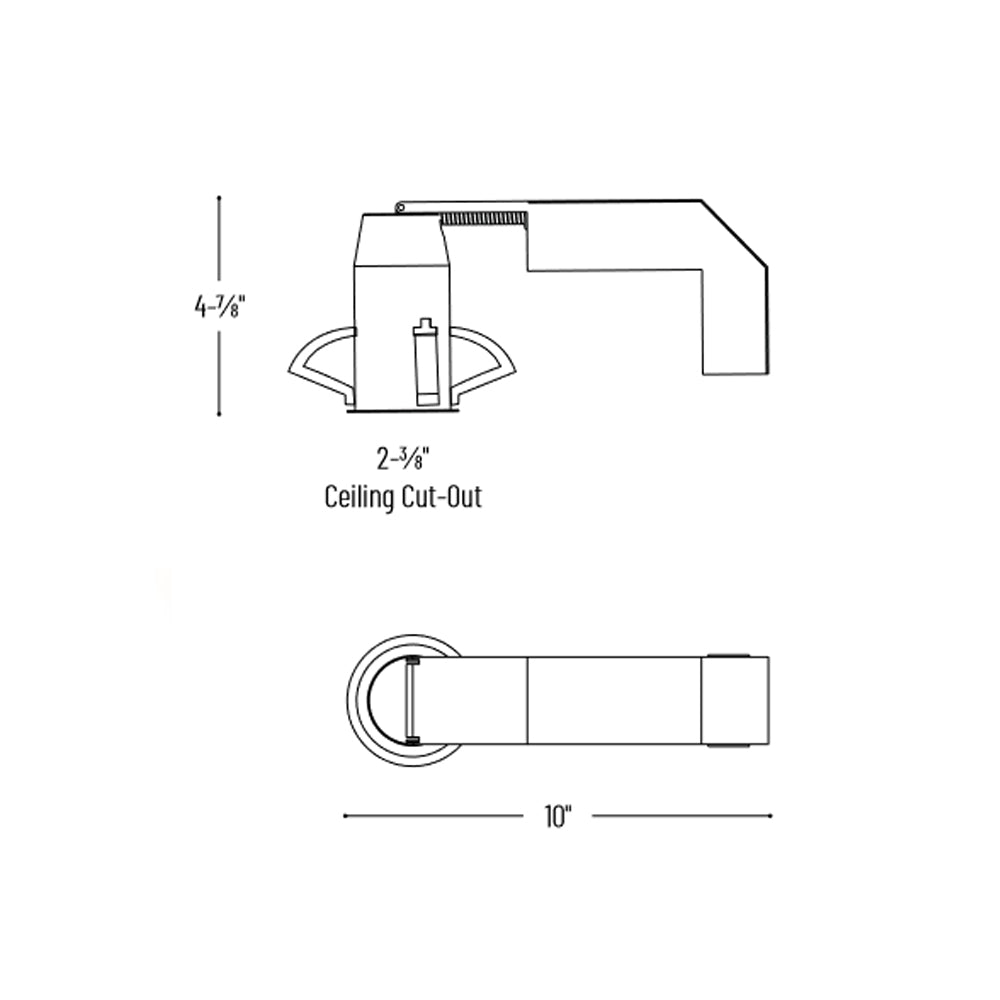

Dimension
2-3/8" L x 4-7/8" H x 2-3/8" Dia. Ceiling Cut-Out

Housing
0.030 steel can connects to integrated0.040 steel structural arm with junction box and drivercompartment. Integral spring brackets provided. Remodelhousing swivels up to 35° depending on ceiling thickness.New construction flat frame available to convert remodelhousing, must specify NHIOFK-1.

Air Flow Restriction
Housing has factory installedgaskets to restrict airflow from room into ceiling plenumto <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.

Clearance
"IC" Insulated ceiling housings are directcontact rated. Not to be used in direct contact with sprayfoam insulation.

Mounting
Four high-tension tempered steel springssecure remodel housing from 1/4" (min) to 5/8" (max) thickceiling. Hole cutout template provided for convenience.

Junction Box
Pre-wired 25 cubic inch 0.064" thickgalvanized steel, with one 1/2" knockout and snap on covers.All leads are #18AWG wire, the ground wire is connected tothe bottom, and quick connectors are supplied on all leads.Maximum of 2 no. 12 AWG through branch circuit conductorssuitable for at least 90°C permitted in junction box.

Accessory
New construction flat frame (NHIOFK-1) allowsaccess to junction box from the room side

Electrical

• Input Voltage: 120-277V
• Input Power: 10W
• Power Factor: =0.90
• Dimming: Triac / ELV / 0-10V
• Operating Temperature: 25°C max.

Labels / Listing

• cULus Listed for Damp Location (Wet Location when used with compatible trim)
• RoHS Compliant
• FCC compliant
• Meets or exceeds ASTM-283 Air-Tight requirements

Shipping Info
Usually ships in 5 to 7 business days. Please message us to find out the availability of this item.
